87986-7

Active

TE Connectivity AMP Connectors

CONN RCPT 7POS 0.156 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

87986-7

Active

TE Connectivity AMP Connectors

CONN RCPT 7POS 0.156 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	87986-7	87986 Series

Connector Type	Receptacle	Receptacle
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	Flash	Flash
Contact Length - Post	2.84 mm	2.84 mm
Contact Length - Post	0.112 in	0.112 in
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height [z]	0.3 in	0.3 in
Insulation Height [z]	7.62 mm	7.62 mm
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	7	4 - 7
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.156 in	0.156 in
Pitch - Mating	3.96 mm	3.96 mm
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

87986 Series

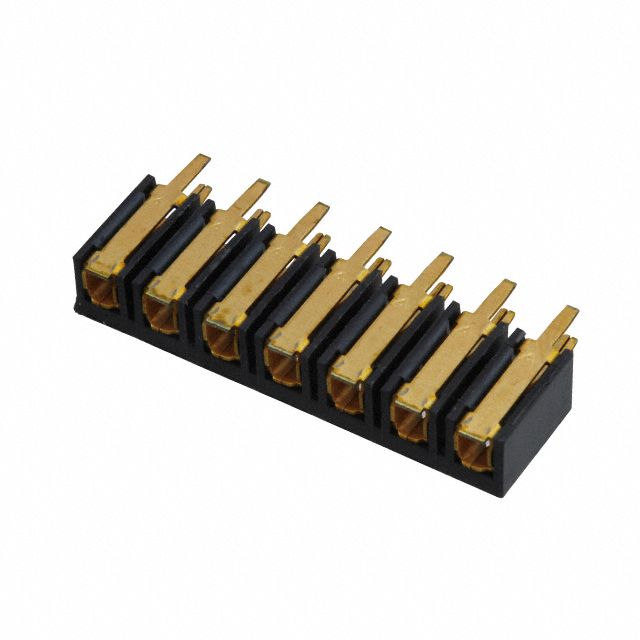

CONN RCPT 7POS 0.156 GOLD PCB

Part	Material Flammability Rating	Insulation Material	Style	Contact Finish - Mating	Insulation Height [z]	Insulation Height [z]	Contact Material	Contact Finish - Post	Fastening Type	Contact Length - Post	Contact Length - Post	Number of Positions	Connector Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Mounting Type	Number of Positions Loaded	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Termination
TE Connectivity AMP Connectors 87986-7	UL94 V-0	Thermoplastic	Board to Board, Cable	Gold	0.3 in	7.62 mm	Phosphor Bronze	Gold	Push-Pull	2.84 mm	0.112 in	7	Receptacle	1	-65 ░C	105 ░C	Black	30 Áin	0.76 Ám	Female Socket	Through Hole	All	Square	0.156 in	3.96 mm	Flash	Solder
TE Connectivity AMP Connectors 87986-4	UL94 V-0	Thermoplastic	Board to Board, Cable	Gold	0.3 in	7.62 mm	Phosphor Bronze	Gold	Push-Pull	2.84 mm	0.112 in	4	Receptacle	1	-65 ░C	105 ░C	Black	30 Áin	0.76 Ám	Female Socket	Through Hole	All	Square	0.156 in	3.96 mm	Flash	Solder
TE Connectivity AMP Connectors 87986-6	UL94 V-0	Thermoplastic	Board to Board, Cable	Gold	0.3 in	7.62 mm	Phosphor Bronze	Gold	Push-Pull	2.84 mm	0.112 in	6	Receptacle	1	-65 ░C	105 ░C	Black	30 Áin	0.76 Ám	Female Socket	Through Hole	All	Square	0.156 in	3.96 mm	Flash	Solder
TE Connectivity AMP Connectors 87986-5	UL94 V-0	Thermoplastic	Board to Board, Cable	Gold	0.3 in	7.62 mm	Phosphor Bronze	Gold	Push-Pull	2.84 mm	0.112 in		Receptacle	1	-65 ░C	105 ░C	Black	30 Áin	0.76 Ám	Female Socket	Through Hole	All	Square	0.156 in	3.96 mm	Flash	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1944	$ 7.82

Description

General part information

87986 Series

7 Position Receptacle Connector 0.156" (3.96mm) Through Hole Gold
