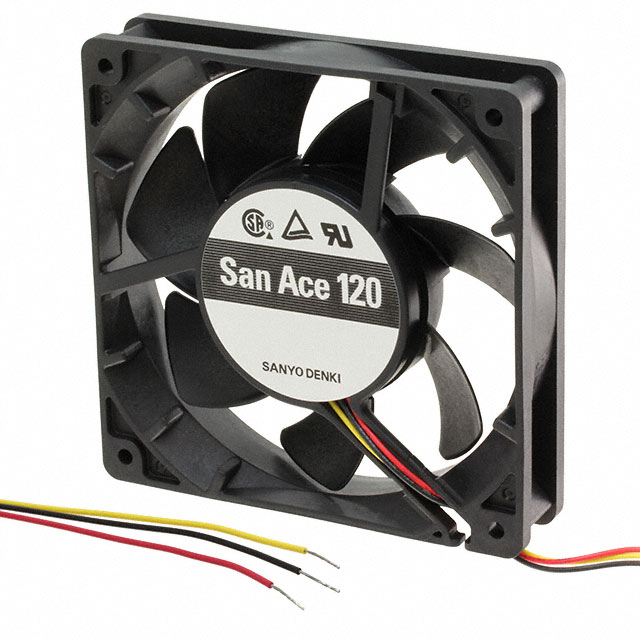

9WP1248M1D01
ActiveSanyo Denki America Inc.
120X38MM 48V,SPLASH PROOF DC LCK
Deep-Dive with AI
Search across all available documentation for this part.
9WP1248M1D01
ActiveSanyo Denki America Inc.
120X38MM 48V,SPLASH PROOF DC LCK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9WP1248M1D01 |
|---|---|
| Approval Agency | UR, CSA, TUV |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Sensor |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Size / Dimension [x] | 120 mm |
| Size / Dimension [y] | 120 mm |
| Termination | 3 Wire Leads |
| Voltage - Rated [custom] | 48 VDC |
| Width [y] | 38 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 21 | $ 43.29 | |
Description
General part information
9WP1248M1D01
Fan Tubeaxial 48VDC Square - 120mm L x 120mm H Ball 3 Wire Leads
Documents
Technical documentation and resources
No documents available
