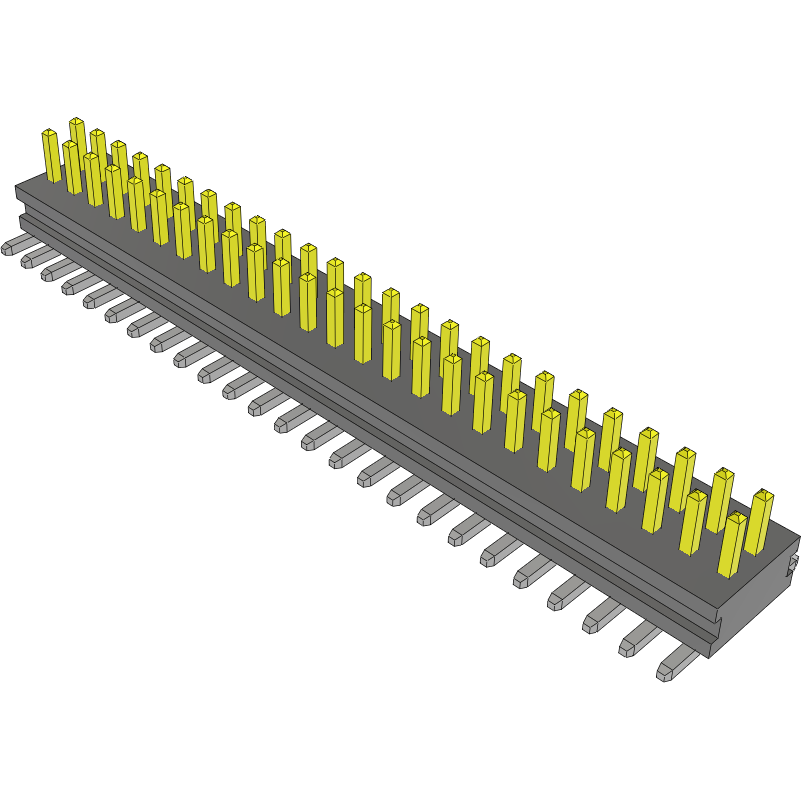

FTMH-125-03-L-DV
ActiveSamtec Inc.
CONN UNSHROUDED HEADER HDR 50 POS 1MM SOLDER ST TOP ENTRY SMD TUBE
FTMH-125-03-L-DV
ActiveSamtec Inc.
CONN UNSHROUDED HEADER HDR 50 POS 1MM SOLDER ST TOP ENTRY SMD TUBE
Description
General part information
FTMH-125-03-L-DV
CONN UNSHROUDED HEADER HDR 50 POS 1MM SOLDER ST TOP ENTRY SMD TUBE
Technical Specifications
Parameters and characteristics for this part
| Specification | FTMH-125-03-L-DV |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 µin |
| Contact Length - Mating | 0.065 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Per Contact) | 2.8 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.059 in |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 50 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch - Mating | 0.039 in |
| Row Spacing - Mating | 0.039 in |
| Shrouding | Unshrouded |
| Style | Board |
| Termination | Solder |
