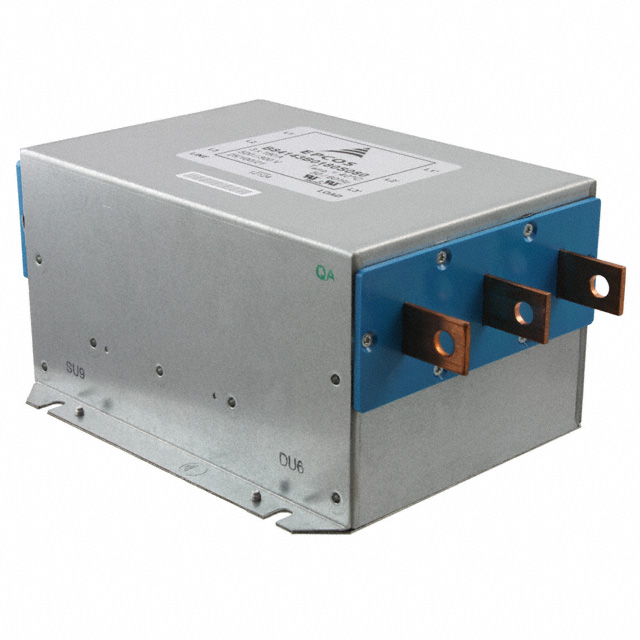

B84143B0180S080
ActiveEPCOS - TDK Electronics
LINE FILTER 520/300VAC 180A CHAS
B84143B0180S080
ActiveEPCOS - TDK Electronics
LINE FILTER 520/300VAC 180A CHAS
Description
General part information
B84143B0180S080
Three Phase (Delta) EMC/EMI Line Filter 180 A 520V, 300V 50/60Hz Two Stage Terminal Post
Technical Specifications
Parameters and characteristics for this part
| Specification | B84143B0180S080 |
|---|---|
| Applications | General Purpose |
| Approval Agency | UR, cUR |
| Configuration | Two Stage |
| Current | 180 A |
| Filter Subtype | Delta |
| Filter Type | Three Phase |
| Frequency - Operating | 60Hz, 50Hz |
| Frequency - Operating (Max) | 60 Hz |
| Frequency - Operating (Min) | 50 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -25 °C |
| Termination Style | Terminal Post |
| Voltage - Rated AC | 520V, 300V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
