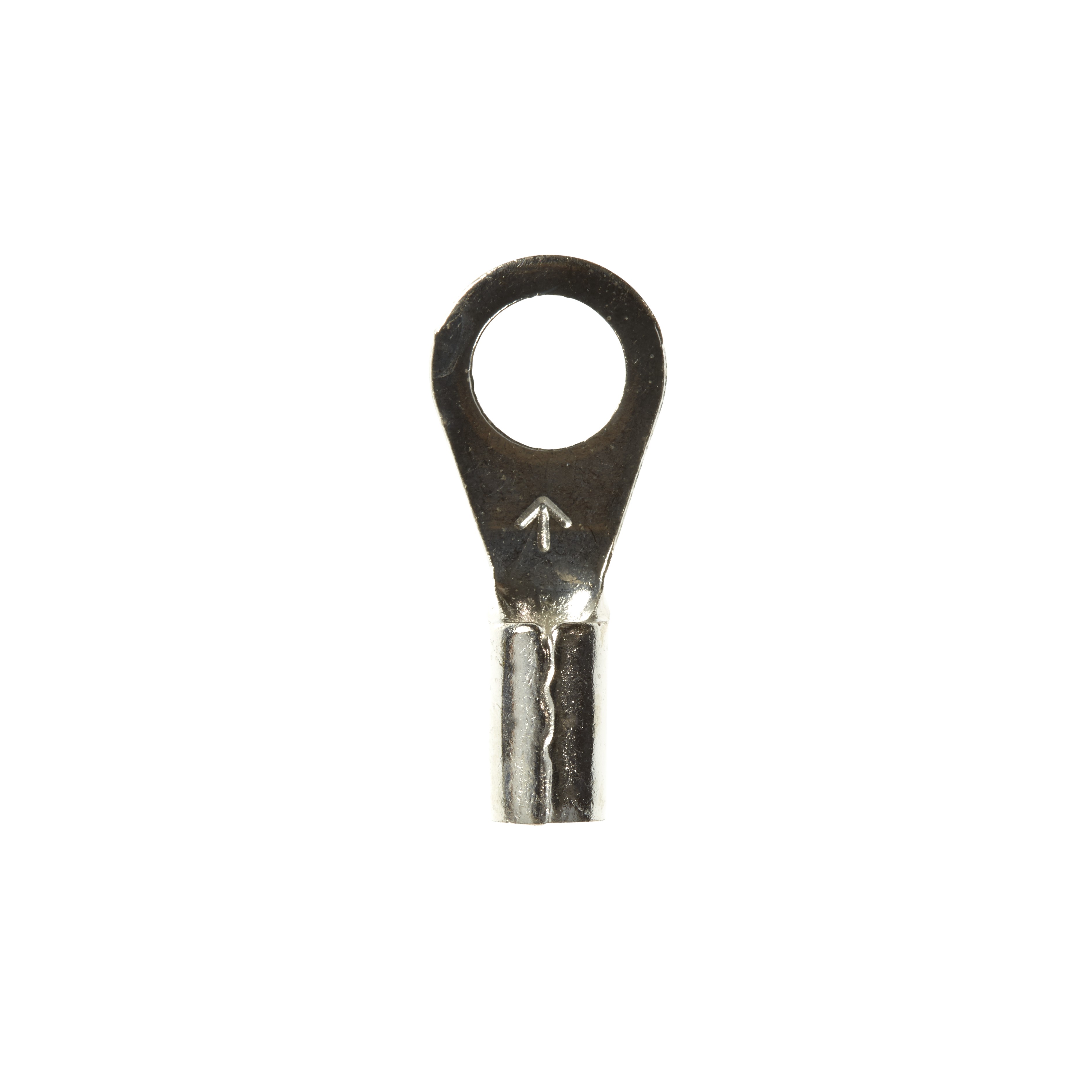

M14-10R/LX-BOTTLE
Active3M Electronic Specialty
CONN RING CIRC 14-16AWG 10 100PC
M14-10R/LX-BOTTLE
Active3M Electronic Specialty
CONN RING CIRC 14-16AWG 10 100PC
Description
General part information
M14-10R/LX-BOTTLE
CONN RING CIRC 14-16AWG 10 100PC
Technical Specifications
Parameters and characteristics for this part
| Specification | M14-10R/LX-BOTTLE |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper, ETP |
| Features | Brazed Seam |
| Insulation | Non-Insulated |
| Length - Overall | 0.74 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 10 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.03 in |
| Width - Outer Edges | 0.31 in |
| Wire Gauge (AWG) (Max) | 16 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
