ERM8-025-01-L-D-EM2-TR

Active

Samtec Inc.

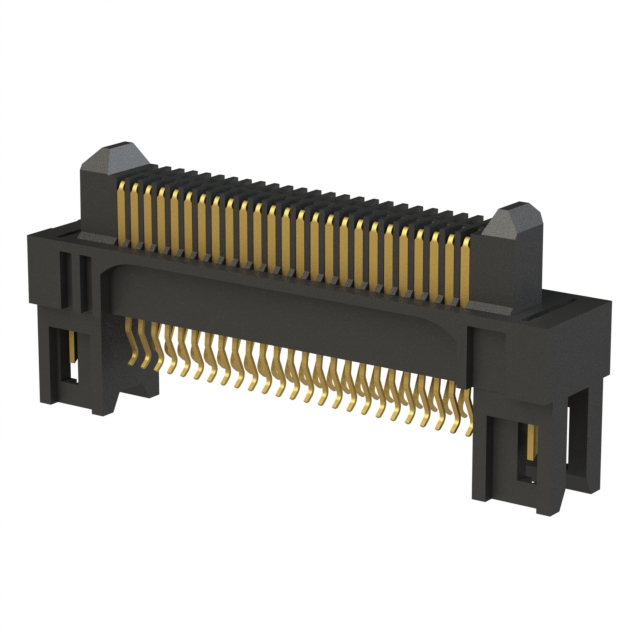

CONN HDR 50POS EDGE MNT GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 0.80 mm Edge Rate® Rugged High Speed Terminal, Edge Mount +2

ERM8-025-01-L-D-EM2-TR

Active

Samtec Inc.

CONN HDR 50POS EDGE MNT GOLD

Deep-Dive with AI

DocumentsDatasheet 0.80 mm Edge Rate® Rugged High Speed Terminal, Edge Mount +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERM8-025-01-L-D-EM2-TR

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Mounting Type	Board Edge, Straddle Mount
Number of Positions	50
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

ERM8-025 Series

Part	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Connector Type	Number of Positions	Contact Finish	Number of Rows	Features	Mounting Type	Mated Stacking Heights
Samtec Inc. ERM8-025-03-S-D-RA-L-K-TR	6.25 mm	0.246 in	0.76 Ám	30 Áin	0.8 mm	0.031 in	Header Center Strip Contacts	50	Gold	2	Board Guide Latches Mounting Flange Pick and Place	Surface Mount Right Angle
Samtec Inc. ERM8-025-01-L-D-EM2-TR			0.25 Ám	10 Áin	0.8 mm	0.031 in	Header Center Strip Contacts	50	Gold	2		Board Edge Straddle Mount
Samtec Inc. ERM8-025-01-L-D-RA-L-TR	6.25 mm	0.246 in	0.25 Ám	10 Áin	0.8 mm	0.031 in	Header Center Strip Contacts	50	Gold	2	Board Guide Latches Mounting Flange	Surface Mount Right Angle
Samtec Inc. ERM8-025-02.0-S-DV-P-TR	5.97 mm	0.235 in	0.76 Ám	30 Áin	0.8 mm	0.031 in	Header Center Strip Contacts	50	Gold	2	Board Guide Pick and Place	Surface Mount	7 mm 9 mm 12 mm
Samtec Inc. ERM8-025-05.0-S-DV-L-TR	8.91 mm	0.351 in	0.76 Ám	30 Áin	0.8 mm	0.031 in	Header Center Strip Contacts	50	Gold	2	Board Guide Latches	Surface Mount	10 mm 12 mm 15 mm
Samtec Inc. ERM8-025-01-S-D-RA-DS-TR	6.25 mm	0.246 in	0.76 Ám	30 Áin	0.8 mm	0.031 in	Differential Pair Array Male	50	Gold	2	Board Guide Mounting Flange	Surface Mount Right Angle
Samtec Inc. ERM8-025-05.0-L-DV-DSS-K-TR	8.91 mm	0.351 in	0.25 Ám	10 Áin	0.8 mm	0.031 in	Differential Pair Array Male	50	Gold	2	Board Guide Mating Guide Pick and Place	Surface Mount	10 mm 12 mm 15 mm
Samtec Inc. ERM8-025-01-L-D-RA-DS-TR	6.25 mm	0.246 in	0.25 Ám	10 Áin	0.8 mm	0.031 in	Differential Pair Array Male	50	Gold	2	Board Guide Mounting Flange	Surface Mount Right Angle
Samtec Inc. ERM8-025-05.0-L-DV-DS-K-TR	8.91 mm	0.351 in	0.25 Ám	10 Áin	0.8 mm	0.031 in	Differential Pair Array Male	50	Gold	2	Board Guide Pick and Place	Surface Mount	10 mm 12 mm 15 mm
Samtec Inc. ERM8-025-05.0-L-DV-DS-TR	8.91 mm	0.351 in	0.25 Ám	10 Áin	0.8 mm	0.031 in	Differential Pair Array Male	50	Gold	2	Board Guide	Surface Mount	10 mm 12 mm 15 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	125	$ 4.18
		625	$ 3.65
		1250	$ 3.61

Description

General part information

ERM8-025 Series

50 Position Connector Header, Center Strip Contacts Board Edge, Straddle Mount Gold

ERM8-025-01-L-D-EM2-TR

Deep-Dive with AI

ERM8-025-01-L-D-EM2-TR

Deep-Dive with AI

Technical Specifications

ERM8-025 Series

Pricing

Description

ERM8-025 Series

Documents

Datasheet

0.80 mm Edge Rate® Rugged High Speed Terminal, Edge Mount

ERF8 Series Other Related Documents 03

ERM8 Datasheet

ERM8-025 Series
