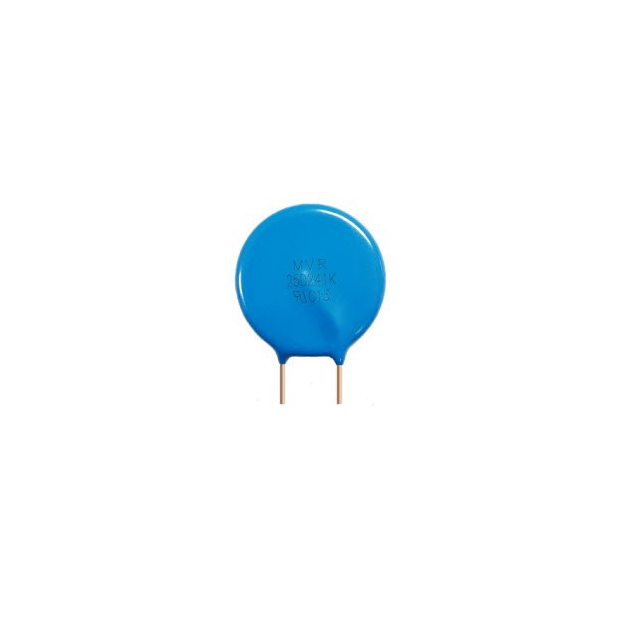

MVR14D911K-S

Active

Meritek

VARISTOR 910V 6000A DISC 14MM HI

Search across all available documentation for this part.

Active

Meritek

VARISTOR 910V 6000A DISC 14MM HI

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

910 V 6 kA Varistor 1 Circuit Through Hole Disc 14mm

Technical documentation and resources

Parameters and characteristics commom to parts in this series

VARISTOR 470V 6000A DISC 14MM HI

Part	Maximum DC Volts [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance @ Frequency	Maximum AC Volts	Current - Surge	Mounting Type	Varistor Voltage (Typ)	Energy	Varistor Voltage (Min) [Min]	Varistor Voltage (Max) [Max]	Features	Package / Case	Package / Case	Number of Circuits	Maximum AC Volts [Max]
Meritek MVR14D471K-S	385 V	-40 °C	105 ░C	430 pF	300 V	6 kA	Through Hole	470 V	175 J	423 V	517 V	High Surge	14 mm	Disc	1
Meritek MVR14D390K	31 V	-40 °C	105 ░C	5100 pF		1 kA	Through Hole	39 V	8.6 J	35 V	43 V		14 mm	Disc	1	25 V
Meritek MVR14D201K	170 V	-40 °C	105 ░C	1000 pF		4.5 kA	Through Hole	200 V	57 J	180 V	220 V		14 mm	Disc	1	130 V
Meritek MVR14D241K	200 V	-40 °C	105 ░C	830 pF		4.5 kA	Through Hole	240 V	63 J	216 V	264 V		14 mm	Disc	1	150 V
Meritek MVR14D681K-S	560 V	-40 °C	105 ░C	290 pF		6 kA	Through Hole	680 V	200 J	621 V	748 V	High Surge	14 mm	Disc	1	420 V
Meritek MVR14D911K-S	745 V	-40 °C	105 ░C	220 pF		6 kA	Through Hole	910 V	255 J	819 V	1.001 kV	High Surge	14 mm	Disc	1	550 V
Meritek MVR14D121K	100 V	-40 °C	105 ░C	1700 pF		4.5 kA	Through Hole	120 V	32 J	108 V			14 mm	Disc	1	75 V
Meritek MVR14D560K	45 V	-40 °C	105 ░C	3600 pF		1 kA	Through Hole	56 V	11 J	50 V	62 V		14 mm	Disc	1	35 V
Meritek MVR14D511K-S	415 V	-40 °C	105 ░C	390 pF		6 kA	Through Hole	510 V	180 J	459 V		High Surge	14 mm	Disc	1	320 V
Meritek MVR14D561K	460 V	-40 °C	105 ░C	360 pF		4.5 kA	Through Hole	560 V	125 J	504 V	616 V		14 mm	Disc	1	350 V
