Part	Voltage - Breakdown (Min)	Power Line Protection	Capacitance	Package / Case	Voltage - Reverse Standoff (Max)	Voltage - Clamping (Max)	Applications	Bidirectional Channels	Type	Current - Peak Pulse	Package Name	Operating Temperature (Min)	Operating Temperature (Max)	Power - Peak Pulse	Mounting Type	Voltage - Clamping (Max) (Typ)	Unidirectional Channels	Package Width	Package Length
NXP USA Inc. PESD5V0S1BSF/S500315	10 V	No	35 pF	0201 (0603 Metric)	5 V	15.5 V	Telecom	1	Zener	8 A	DSN0603-2	-55 °C	150 °C	100 W	Surface Mount
NXP USA Inc. PESD5V0C1USF/S50YL	5.5 V	No	0.45 pF	2-XFDFN	5 V		General Purpose		Zener	9 A	2-DSN0603	-40 °C	125 °C		Surface Mount	3 V	1
NXP USA Inc. PESD5V2S18U,118	6.4 V	No	100 pF		5.2 V	12 V	General Purpose		Zener	10 A	20-SSOP	-65 °C	150 °C	100 W	Surface Mount		18	5.3 mm	0.209 in
NXP USA Inc. PESD5V0R1BSF315	6 V	No	0.1 pF	0201 (0603 Metric)	5 V	5 V	General Purpose	1	Zener	4.5 A	DSN0603-2	-40 °C	125 °C		Surface Mount
NXP USA Inc. PESD5V0R1BSF/S50YL
NXP USA Inc. PESD5V0U4BF,115
NXP USA Inc. PESD5V0H1BSF/S50YL
NXP USA Inc. PESD5V0L5UK,132
NXP USA Inc. PESD5V2S2UT/ZLR
NXP USA Inc. PESD5V0U2BMB,315

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

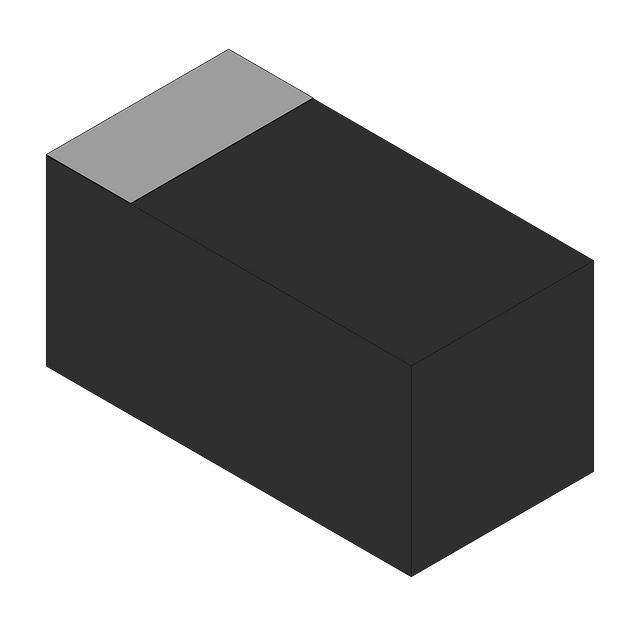

3D models and CAD resources for this part

Technical documentation and resources
