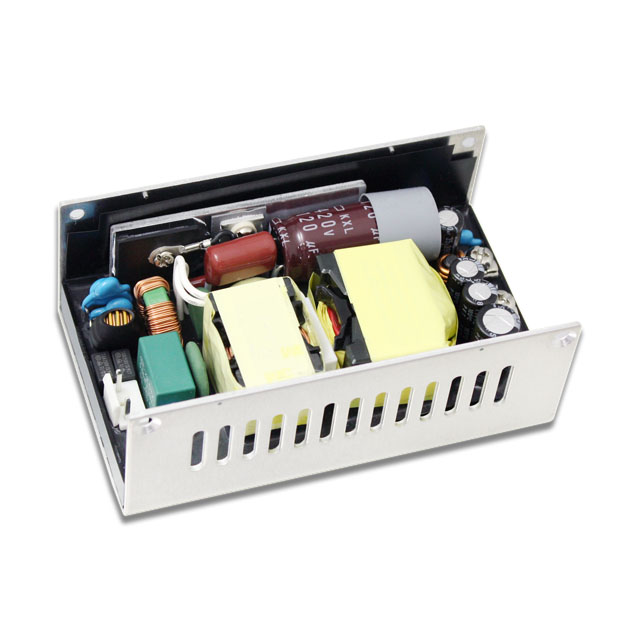

ARF240U-24S

Active

ARCH Electronics Corp

AC/DC CONVERTER 24V 240W

Search across all available documentation for this part.

Active

ARCH Electronics Corp

AC/DC CONVERTER 24V 240W

Technical Specifications

Parameters and characteristics for this part

Specification	ARF240U-24S

Applications	ITE (Commercial)
Approval Agency	CB, cURus, CE
Current - Output 1	10 A
Efficiency	93 %
Features	PFC, Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	80 ¯C
Operating Temperature [Min]	-30 °C
Power (Watts)	240 W
Size / Dimension [x]	4.1 "
Size / Dimension [x]	104.1 mm
Size / Dimension [y]	2.46 "
Size / Dimension [y]	62.5 mm
Size / Dimension [z]	39.1 mm
Size / Dimension [z]	1.54 "
Standard Number	60950-1, 62368-1
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	24 V

AC/DC CONVERTER 24V 240W

Part	Power (Watts)	Features	Mounting Type	Voltage - Output 1	Type	Efficiency	Minimum Load Required	Standard Number	Current - Output 1	Applications	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Voltage - Isolation	Number of Outputs
ARCH Electronics Corp ARF240U-24S	240 W	Adjustable Output, PFC, Universal Input	Chassis Mount	24 V	Open Frame	93 %		60950-1, 62368-1	10 A	ITE (Commercial)	39.1 mm	2.46 "	4.1 "	62.5 mm	104.1 mm	1.54 "	-30 °C	80 ¯C	90 VAC	264 VAC	CB, CE, cURus	4000 V	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
