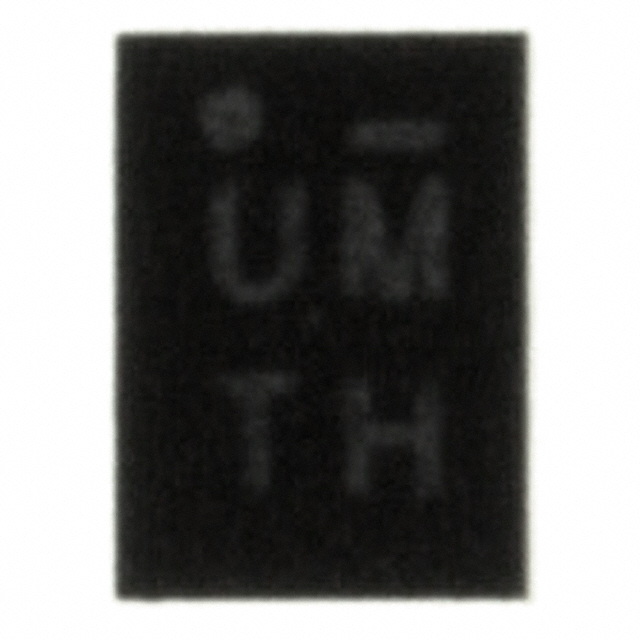

PI3USB10MZKEX

Obsolete

Diodes Inc

MULTIPLEXER AND DEMUX/DECODER, USB SERIES, 1-FUNC, 2 LINE INPUT, 4 LINE OUTPUT, TRUE OUTPUT, 1.60 X 2.20 MM, GREEN, TQFN-12

Search across all available documentation for this part.

Obsolete

Diodes Inc

MULTIPLEXER AND DEMUX/DECODER, USB SERIES, 1-FUNC, 2 LINE INPUT, 4 LINE OUTPUT, TRUE OUTPUT, 1.60 X 2.20 MM, GREEN, TQFN-12

Technical Specifications

Parameters and characteristics for this part

Specification	PI3USB10MZKEX

-3db Bandwidth	700 MHz
Applications	USB
Features	USB 2.0, Bi-Directional
Mounting Type	Surface Mount
Multiplexer/Demultiplexer Circuit	2:1
Number of Channels [custom]	2
On-State Resistance (Max) [Max]	6.5 Ohm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	12-WFQFN Exposed Pad
Voltage - Supply, Single (V+) [Max]	5 V
Voltage - Supply, Single (V+) [Min]	2.7 V

Part	Multiplexer/Demultiplexer Circuit	On-State Resistance (Max) [Max]	-3db Bandwidth	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Single (V+) [Min]	Mounting Type	Number of Channels	Applications	Package / Case	Features	Number of Channels [custom]
Diodes Inc PI3USB10LP-AZMEX	2:1	6.5 Ohm	1 GHz	1.8	10-UQFN	1.4	85 °C	-40 °C	4.4 V	2.7 V	Surface Mount	1	USB	10-UFQFN	Bi-Directional USB 2.0
Diodes Inc PI3USB10LP-AZLEX	2:1	6.5 Ohm	1 GHz		10-TQFN (1.3x1.6)		85 °C	-40 °C	4.4 V	2.7 V	Surface Mount	1	USB	10-WFQFN	Bi-Directional USB 2.0
Diodes Inc PI3USB10MZKEX	2:1	6.5 Ohm	700 MHz				85 °C	-40 °C	5 V	2.7 V	Surface Mount		USB	12-WFQFN Exposed Pad	Bi-Directional USB 2.0	2
