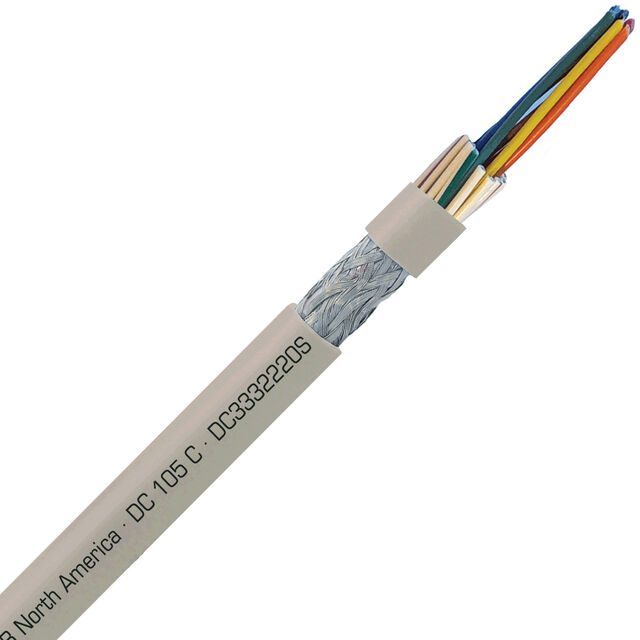

DC3332220S

Active

SAB North America

CABLE 20COND 22AWG GRY SHD 1=1FT

Search across all available documentation for this part.

Active

SAB North America

CABLE 20COND 22AWG GRY SHD 1=1FT

Technical Specifications

Parameters and characteristics for this part

Specification	DC3332220S

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.371 in
Jacket (Insulation) Diameter [diameter]	9.42 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	Enter Number of Feet in Order Quantity
Number of Conductors	20
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Shield Material	Copper, Tinned
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	22 AWG

CABLE 20COND 22AWG GRY SHD 1=1FT

Part	Conductor Strand [custom]	Conductor Strand [custom]	Shield Material	Conductor Insulation	Voltage	Number of Conductors	Jacket (Insulation) Material	Wire Gauge	Shield Type	Features	Length	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color
SAB North America DC3332220S	7	30 AWG	Copper, Tinned	Poly-Vinyl Chloride (PVC)	300 V	20	Poly-Vinyl Chloride (PVC)	22 AWG	Braid, Foil	Drain Wire	Enter Number of Feet in Order Quantity	Multi-Conductor	-25 °C	105 ░C	Copper, Tinned	0.371 in	9.42 mm	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Conductor Multi-Conductor Cable Gray 22 AWG Foil, Braid Enter Number of Feet in Order Quantity
