8466 060500

Active

Belden Inc.

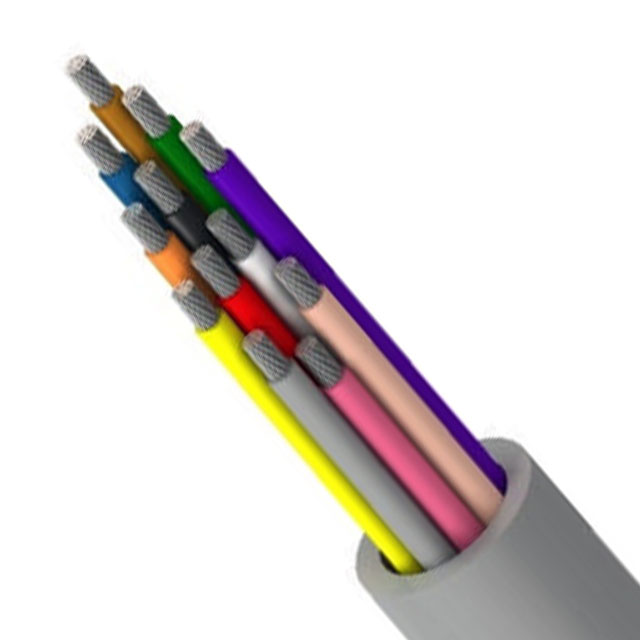

CABLE 12COND 18AWG CHROME 50'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCabling Solutions for Industrial Applications Datasheet

8466 060500

Active

Belden Inc.

CABLE 12COND 18AWG CHROME 50'

Deep-Dive with AI

DocumentsCabling Solutions for Industrial Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8466 060500

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	10.46 mm
Jacket (Insulation) Diameter [diameter]	0.412 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.04 in
Jacket (Insulation) Thickness	1.016 mm
Jacket Color	Chrome
Length	15.24 m
Length [x]	50 ft, 500 '
Length [x]	152.4 m
Number of Conductors	12
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Usage	Audio, Instrumentation, Control
Wire Gauge	18 AWG

8466 Series

Part	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Jacket Color	Usage	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Conductor Insulation	Conductor Material	Ratings	Cable Type	Length [x]	Length [x]
Belden Inc. 8466 0601000	19	30 AWG	12	300 V	10.46 mm	0.412 in	-20 C	60 °C	18 AWG	Chrome	Audio Control Instrumentation	1000 ft	304.8 m	0.04 in	1.016 mm	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Copper Tinned	UL Style 2598	Multi-Conductor
Belden Inc. 8466 060100	19	30 AWG	12		10.46 mm	0.412 in	-20 C	60 °C	18 AWG	Chrome	Audio Control Instrumentation			0.04 in	1.016 mm	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Copper Tinned		Multi-Conductor	30.5 m	100 ft
Belden Inc. 8466 0605000	19	30 AWG	12	300 V	10.46 mm	0.412 in	-20 C	60 °C	18 AWG	Chrome	Audio Control Instrumentation			0.04 in	1.016 mm	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Copper Tinned	UL Style 2598	Multi-Conductor
Belden Inc. 8466 060500	19	30 AWG	12		10.46 mm	0.412 in	-20 C	60 °C	18 AWG	Chrome	Audio Control Instrumentation		15.24 m	0.04 in	1.016 mm	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Copper Tinned		Multi-Conductor	152.4 m	50 ft 500 '
Belden Inc. 8466 060250	19	30 AWG	12	300 V	10.46 mm	0.412 in	-20 C	60 °C	18 AWG	Chrome	Audio Control Instrumentation	3000 "	76.2 m	0.04 in	1.016 mm	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Copper Tinned	UL Style 2598	Multi-Conductor

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 406.59
		5	$ 361.41
		10	$ 327.53
		25	$ 304.94
	Spool	500	$ 6.56
		1000	$ 6.23
		1500	$ 6.10

Description

General part information

8466 Series

12 Conductor Multi-Conductor Cable Chrome 18 AWG 50.00' (15.24m)

Documents

Technical documentation and resources

Cabling Solutions for Industrial Applications

Datasheet
