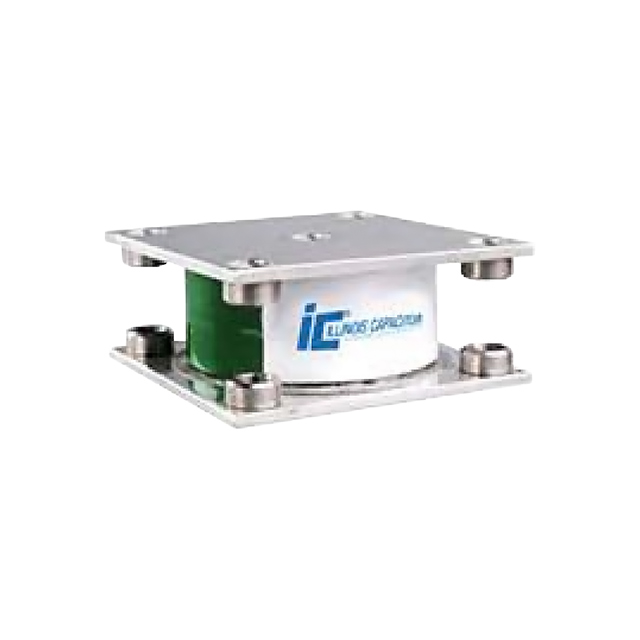

664LC6102K5PM8
ActiveCornell Dubilier Knowles
CAP FILM 0.66UF 1KVAC CHAS MT
664LC6102K5PM8
ActiveCornell Dubilier Knowles
CAP FILM 0.66UF 1KVAC CHAS MT
Description
General part information
664LC6102K5PM8
0.66 µF Film Capacitor 1000V (1kV) Polypropylene (PP) Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | 664LC6102K5PM8 |
|---|---|
| Applications | High Pulse, DV/DT, Conduction Cooled |
| Capacitance | 0.66 µF |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 0.8 mOhm |
| Height - Seated (Max) | 2.146 in |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Size / Dimension Length | 3.937 in |
| Size / Dimension Width | 3.937 in |
| Termination | Threaded, Female |
| Tolerance | 10 % |
| Voltage Rating - AC | 1 kVAC |
