1836366
ActivePhoenix Contact
HEADER, NOMINAL CURRENT: 12 A, R
1836366
ActivePhoenix Contact
HEADER, NOMINAL CURRENT: 12 A, R
Description
General part information
1836366

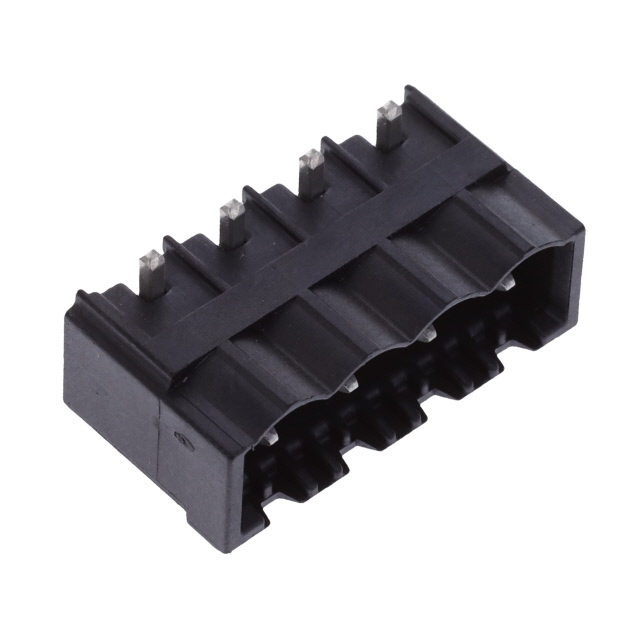

4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1836366 |
|---|---|
| Color | Black |
| Contact Mating Finish | Tin |
| Current - IEC | 12 A |
| Header Orientation | Right Angle |
| Header Orientation Angle | 90 ° |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 4 |
| Pitch | 0.197 in |
| Positions Per Level | 4 |
| Termination Style | Solder |
| Type | Shrouded (4 Side), Male Pins, Header |
| Voltage - IEC | 320 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
