Description
General part information

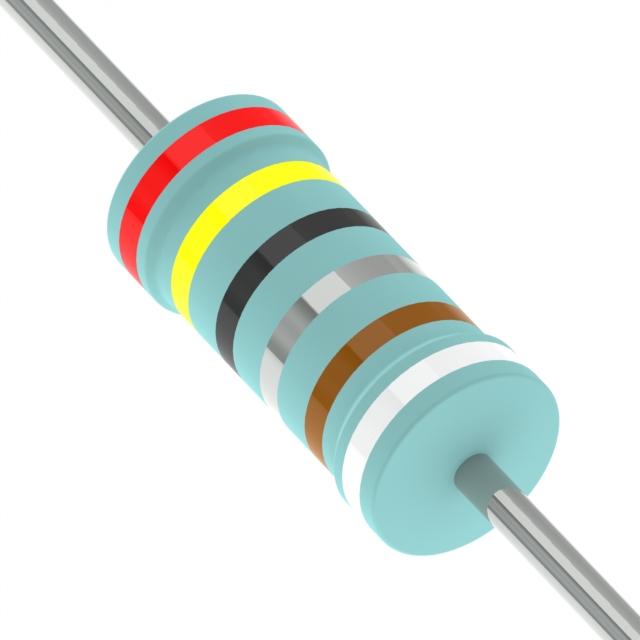

FKN300FR-73-2R4
2.4 Ohms ±1% 3W Through Hole Resistor Axial Flame Proof, Fusible, Safety Wirewound
Technical Specifications
Parameters and characteristics for this part
| Specification | FKN300FR-73-2R4 |
|---|---|
| Composition | Wirewound |
| Features | Flame Proof, Safety, Fusible |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 3 W |
| Resistance | 2.4 Ohm |
| Size / Dimension Diameter | 0.256 in |
| Size / Dimension Length | 0.689 in |
| Temperature Coefficient | 350 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
