Description
General part information

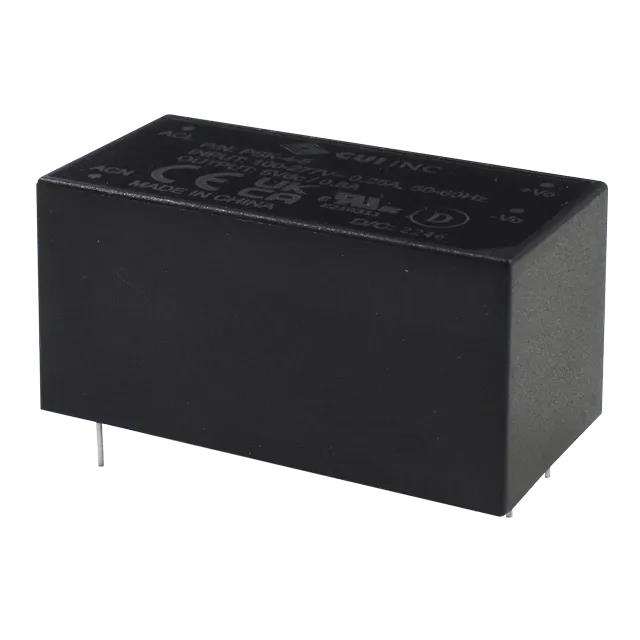

PSK-4-12
Enclosed AC DC Converters 1 Output 12V 333mA 85 ~ 305 VAC, 120 ~ 431 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | PSK-4-12 |
|---|---|
| Applications | ITE (Commercial), Household Appliances |
| Approval Agency | CE, UKCA |
| Current - Output (Max) | 333 mA |
| Efficiency | 81 % |
| Features | Universal Input |
| Line Regulation | 1 % |
| Load Regulation (Percent) | 3 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4-DIP Module |
| Power (Watts) | 3.9 W |
| Size / Dimension Height | 0.79 in |
| Size / Dimension Length | 1.62 in |
| Size / Dimension Width | 0.83 in |
| Standard Number | 60335-1, 62368-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 305 VAC |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Input (DC) Maximum | 431 VDC |
| Voltage - Input (DC) Minimum | 120 V |
| Voltage - Output 1 | 12 V |
