Specification	SIT3808AC-22-33NH-16.000000

Absolute Pull Range (Maximum)	170 ppm
Absolute Pull Range (Minimum)	-170 ppm
Base Resonator	MEMS
Current - Supply (Max)	33 mA
Frequency	16 MHz
Frequency Stability	25 ppm
Height - Seated (Max)	0.031 in
Mounting Type	Surface Mount
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Output	LVTTL, LVCMOS

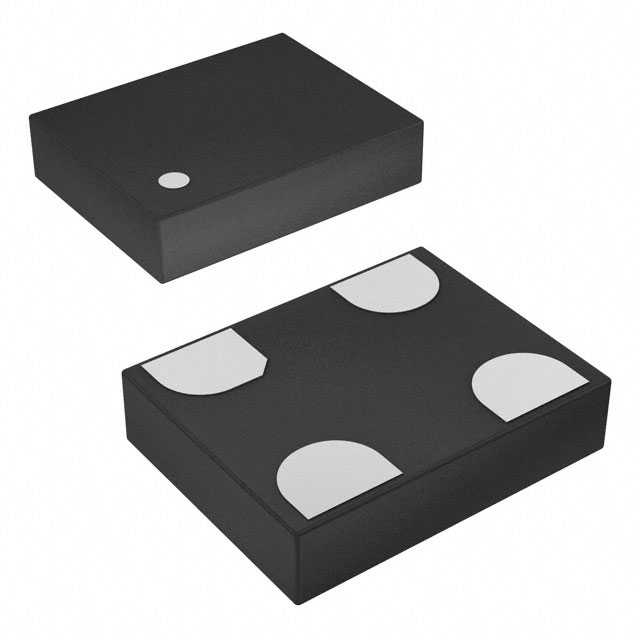

Package / Case	4-SMD, No Lead
Package Length	3.2 mm
Package Name	4-SMD
Package Width	2.5 mm
Size / Dimension Length	0.126 in
Size / Dimension Width	0.098 in
Type	VCXO
Voltage - Supply	3.3 V

SIT3808 Series

...

Part	Frequency	Output	Mounting Type	Size / Dimension Width	Size / Dimension Length	Base Resonator	Type	Package / Case	Frequency Stability	Package Length	Package Name	Package Width	Current - Supply (Max)	Voltage - Supply	Operating Temperature (Max)	Operating Temperature (Min)	Height - Seated (Max)	Function	Absolute Pull Range (Maximum)	Absolute Pull Range (Minimum)
SiTime SIT3808AC-23-33NY-16.000000	16 MHz	LVCMOS	Surface Mount	0.098 in	0.126 in	MEMS	VCXO	4-SMD No Lead	50 ppm	3.2 mm	4-SMD	2.5 mm	33 mA	3.3 V	70 °C	-20 °C	0.031 in
SiTime SIT3808AI-D3-33EE-27.000000	27 MHz	LVCMOS	Surface Mount	0.197 in	0.276 in	MEMS	VCXO	6-SMD No Lead	50 ppm	7 mm	6-SMD	5 mm	33 mA	3.3 V	85 °C	-40 °C	0.039 in	Disable Enable
SiTime SIT3808AI-23-33NE-34.816000	34.816 MHz	LVCMOS	Surface Mount	0.098 in	0.126 in	MEMS	VCXO	4-SMD No Lead	50 ppm	3.2 mm	4-SMD	2.5 mm	33 mA	3.3 V	85 °C	-40 °C	0.031 in
SiTime SIT3808AI-D3-33EH-61.440000	61.44 MHz	LVCMOS	Surface Mount	0.197 in	0.276 in	MEMS	VCXO	6-SMD No Lead	50 ppm	7 mm	6-SMD	5 mm	33 mA	3.3 V	85 °C	-40 °C	0.039 in	Disable Enable
SiTime SIT3808AI-D3-25EE-32.768000	32.768 MHz	LVCMOS	Surface Mount	0.197 in	0.276 in	MEMS	VCXO	6-SMD No Lead	50 ppm	7 mm	6-SMD	5 mm	33 mA	2.5 V	85 °C	-40 °C	0.039 in	Disable Enable
SiTime SIT3808AC-DF-33NZ-56.800000S	56.8 MHz	LVCMOS LVTTL	Surface Mount	0.197 in	0.276 in	MEMS	VCXO	6-SMD No Lead	10 ppm	7 mm	6-SMD	5 mm	33 mA	3.3 V	70 °C	-20 °C	0.039 in		1585 ppm	-1585 ppm
SiTime SIT3808AI-G2-33NB-40.000000	40 MHz	LVCMOS LVTTL	Surface Mount	0.094 in	0.106 in	MEMS	VCXO	4-SMD No Lead	25 ppm	2.7 mm	4-SMD	2.4 mm	33 mA	3.3 V	85 °C	-40 °C	0.031 in		20 ppm	-20 ppm
SiTime SIT3808BI-C2-33EH-61.440000	61.44 MHz	LVCMOS LVTTL	Surface Mount	0.126 in	0.197 in	MEMS	VCXO	6-SMD No Lead	25 ppm	5 mm	6-SMD	3.2 mm	33 mA	3.3 V	85 °C	-40 °C	0.031 in	Disable Enable	170 ppm	-170 ppm
SiTime SIT3808AI-CF-33EM-51.200000	51.2 MHz	LVCMOS LVTTL	Surface Mount	0.126 in	0.197 in	MEMS	VCXO	6-SMD No Lead	10 ppm	5 mm	6-SMD	3.2 mm	33 mA	3.3 V	85 °C	-40 °C	0.031 in	Disable Enable	10 ppm	-10 ppm
SiTime SIT3808AC-DF-33NG-1.00000X	1 MHz	LVCMOS LVTTL	Surface Mount	0.197 in	0.276 in	MEMS	VCXO	6-SMD No Lead	10 ppm	7 mm	6-SMD	5 mm	33 mA	3.3 V	70 °C	-20 °C	0.039 in		785 ppm	-785 ppm
