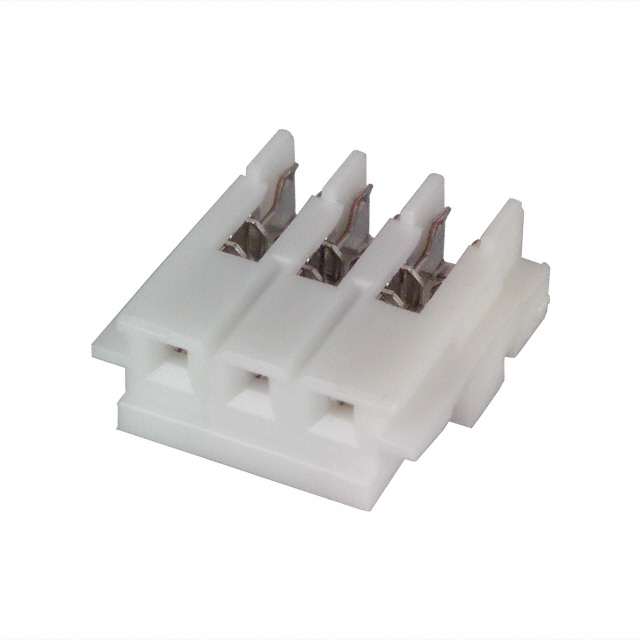

03HR-6S-P-N

Active

JST Sales America Inc.

CONN RCPT 3POS IDC 26AWG TIN

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN RCPT 3POS IDC 26AWG TIN

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN RCPT 3POS IDC 24AWG TIN

Part	Wire Type	Contact Type	Pitch [x]	Pitch [x]	Features	Color	Number of Rows	Cable Termination	Contact Finish	Connector Type	Fastening Type	Mounting Type	Wire Gauge
JST Sales America Inc. 03HR-4K-P-N	Discrete	Female Socket	0.098 in	2.5 mm	Closed End	Black	1	IDC	Tin	Receptacle	Detent Lock	Free Hanging (In-Line)	24 AWG
JST Sales America Inc. 03HR-6S-P-N	Discrete	Female Socket	0.098 in	2.5 mm	Closed End	Natural	1	IDC	Tin	Receptacle	Detent Lock	Free Hanging (In-Line)	26 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.10

General part information

3 Position Rectangular Receptacle Connector IDC Tin 26 AWG
