628-2WK2624-5TC

Active

EDAC Inc.

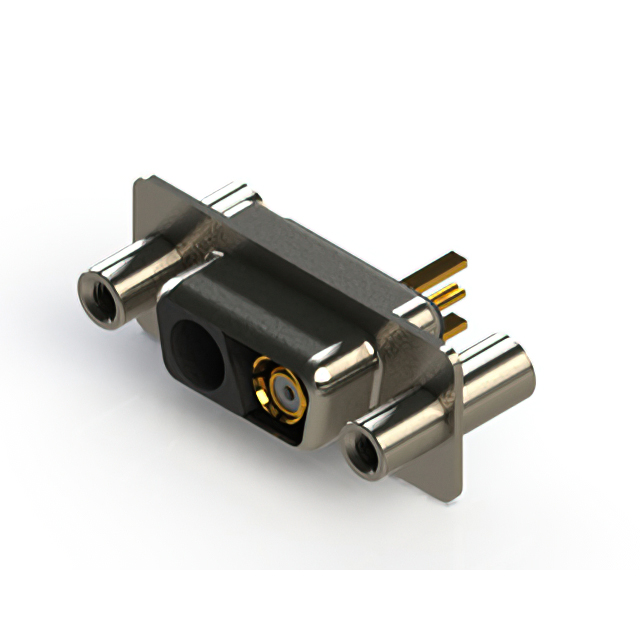

CONN D-SUB RCPT 2POS VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

628-2WK2624-5TC

Active

EDAC Inc.

CONN D-SUB RCPT 2POS VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628-2WK2624-5TC

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Female Sockets, Male Pins, Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal, Coax
Dielectric Material	Polyester Thermoplastic
Features	Shielded
Flange Feature [custom]	M3
Flange Feature [custom]	M3
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2WK2, 1 (DE, E), 2V2, 2W2C, 2W2
Termination	Solder
Voltage Rating	125 VDC

628-2WK Series

...

Part	Contact Finish Thickness	Flange Feature	Mounting Type	Voltage Rating	Shell Size, Connector Layout	Number of Rows	Contact Material	Current Rating (Amps)	Dielectric Material	Connector Type	Features	Contact Type	Shell Material, Finish	Connector Style	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Color	Material Flammability Rating	Contact Finish	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [custom]	Flange Feature [custom]
EDAC Inc. 628-2WK2224-2N6	Flash	4-40	Through Hole	125 VDC	1 (DE E) 2V2 2W2 2W2C 2WK2	2	Copper Alloy	20 A	Polyester Thermoplastic	Female Sockets Male Pins Receptacle	Board Lock Shielded	Signal and Power	Nickel Plated Steel	Combo D-Sub	Solder	-55 °C	125 °C	Black	UL94 V-0	Gold	2
EDAC Inc. 628-2WK2624-5TC			Through Hole	125 VDC	1 (DE E) 2V2 2W2 2W2C 2WK2	2	Copper Alloy		Polyester Thermoplastic	Female Sockets Male Pins Receptacle	Shielded	Coax Signal		Combo D-Sub	Solder	-55 °C	125 °C	Black	UL94 V-0	Gold	2	0.76 Ám	30 Áin	M3	M3
EDAC Inc. 628-2WK2624-1N5		4-40 Board Side	Through Hole	125 VDC	1 (DE E) 2V2 2W2 2W2C 2WK2	2	Copper Alloy	10 A	Polyester Thermoplastic	Female Sockets Male Pins Receptacle	Board Lock Shielded	Signal and Power	Nickel Plated Steel	Combo D-Sub	Solder	-55 °C	125 °C	Black	UL94 V-0	Gold	2	0.76 Ám	30 Áin
EDAC Inc. 628-2WK2224-2N1	Flash	Housing/Shell (Unthreaded)	Through Hole	125 VDC	1 (DE E) 2V2 2W2 2W2C 2WK2	2	Copper Alloy	20 A	Polyester Thermoplastic	Female Sockets Male Pins Receptacle	Shielded	Signal and Power	Nickel Plated Steel	Combo D-Sub	Solder	-55 °C	125 °C	Black	UL94 V-0	Gold	2
EDAC Inc. 628-2WK2224-7N3	Flash	4-40 Board Side	Through Hole	125 VDC	1 (DE E) 2V2 2W2 2W2C 2WK2	2	Copper Alloy		Polyester Thermoplastic	Female Sockets Male Pins Receptacle	Shielded	Coax Signal	Nickel Plated Steel	Combo D-Sub	Solder	-55 °C	125 °C	Black	UL94 V-0	Gold	2
EDAC Inc. 628-2WK2624-7TE		M3	Through Hole	125 VDC	1 (DE E) 2V2 2W2 2W2C 2WK2	2	Copper Alloy		Polyester Thermoplastic	Female Sockets Male Pins Receptacle	Board Lock Shielded	Coax Signal		Combo D-Sub	Solder	-55 °C	125 °C	Black	UL94 V-0	Gold	2	0.76 Ám	30 Áin
EDAC Inc. 628-2WK2624-7N6		4-40	Through Hole	125 VDC	1 (DE E) 2V2 2W2 2W2C 2WK2	2	Copper Alloy		Polyester Thermoplastic	Female Sockets Male Pins Receptacle	Board Lock Shielded	Coax Signal	Nickel Plated Steel	Combo D-Sub	Solder	-55 °C	125 °C	Black	UL94 V-0	Gold	2	0.76 Ám	30 Áin
EDAC Inc. 628-2WK2224-2ND	Flash	Board Side (M3)	Through Hole	125 VDC	1 (DE E) 2V2 2W2 2W2C 2WK2	2	Copper Alloy	20 A	Polyester Thermoplastic	Female Sockets Male Pins Receptacle	Board Lock Shielded	Signal and Power	Nickel Plated Steel	Combo D-Sub	Solder	-55 °C	125 °C	Black	UL94 V-0	Gold	2
EDAC Inc. 628-2WK2624-7N1		Housing/Shell (Unthreaded)	Through Hole	125 VDC	1 (DE E) 2V2 2W2 2W2C 2WK2	2	Copper Alloy		Polyester Thermoplastic	Female Sockets Male Pins Receptacle	Shielded	Coax Signal	Nickel Plated Steel	Combo D-Sub	Solder	-55 °C	125 °C	Black	UL94 V-0	Gold	2	0.76 Ám	30 Áin
EDAC Inc. 628-2WK2224-7T6	Flash	4-40	Through Hole	125 VDC	1 (DE E) 2V2 2W2 2W2C 2WK2	2	Copper Alloy		Polyester Thermoplastic	Female Sockets Male Pins Receptacle	Board Lock Shielded	Coax Signal		Combo D-Sub	Solder	-55 °C	125 °C	Black	UL94 V-0	Gold	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	200	$ 12.12

Description

General part information

628-2WK Series

2 (Coax) Position D-Sub, Combo Receptacle, Female Sockets and Male Pins Connector
