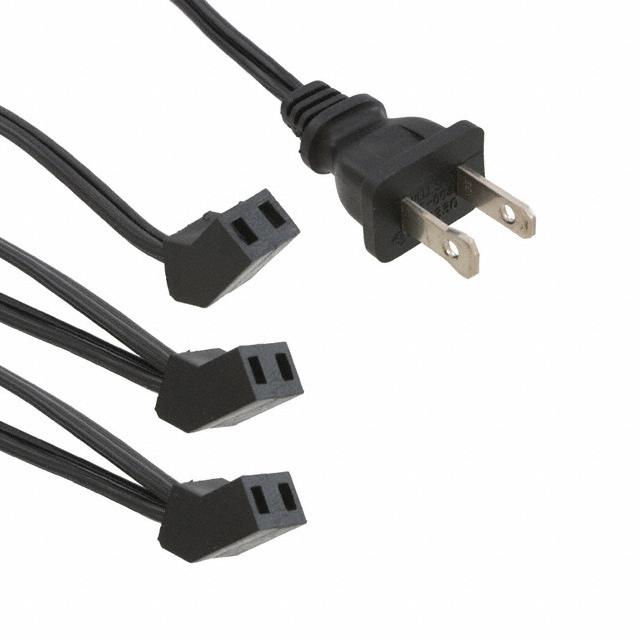

C45-3DC-24P

Active

Orion Fans

45 DEGREE, 3 HEADS, 24IN LEAD WITH PLUG, 10A 125/250VAC

Search across all available documentation for this part.

Active

Orion Fans

45 DEGREE, 3 HEADS, 24IN LEAD WITH PLUG, 10A 125/250VAC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	C45-3DC-24P	C45-3D Series

1st Connector	Fan Terminal Receptacle 45° (3)	Fan Terminal Receptacle 45° (3)
2nd Connector	NEMA 1-15 Plug	NEMA 1-15 Plug, Open Wires
Approval Agency Marking	cURus, TUV	cURus, TUV
Cord Type	SPT-1	SPT-1
Features	Daisy Chain	Daisy Chain
Length	304.8 mm	1.83 - 304.8 mm
Length	-	72 in
Length [x]	12 in	12 in
Number of Conductors	2	2
Style	Female Receptacle to Male Plug	Female Receptacle to Male Plug, Female Receptacle to Cable
Wire Gauge	18 AWG	18 AWG

45 DEGREE, 3 HEADS, 24IN LEAD WITH PLUG, 10A 125/250VAC

Part	1st Connector	Wire Gauge	2nd Connector	Number of Conductors	Features	Cord Type	Length	Length [x]	Approval Agency Marking	Style	Length
Orion Fans C45-3DC-24P	Fan Terminal Receptacle 45° (3)	18 AWG	NEMA 1-15 Plug	2	Daisy Chain	SPT-1	304.8 mm	12 in	cURus, TUV	Female Receptacle to Male Plug
Orion Fans C45-3DC-72P	Fan Terminal Receptacle 45° (3)	18 AWG	NEMA 1-15 Plug	2	Daisy Chain	SPT-1	1.83 m		cURus, TUV	Female Receptacle to Male Plug	72 in
Orion Fans C45-3DC-24	Fan Terminal Receptacle 45° (3)	18 AWG	Open Wires	2	Daisy Chain	SPT-1	304.8 mm	12 in	cURus, TUV	Female Receptacle to Cable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Power Cord Fan Terminal Receptacle 45° (3) 12.0" (304.8mm) NEMA 1-15 Plug
