FSG.0B.302.CLAD52
ActiveLEMO

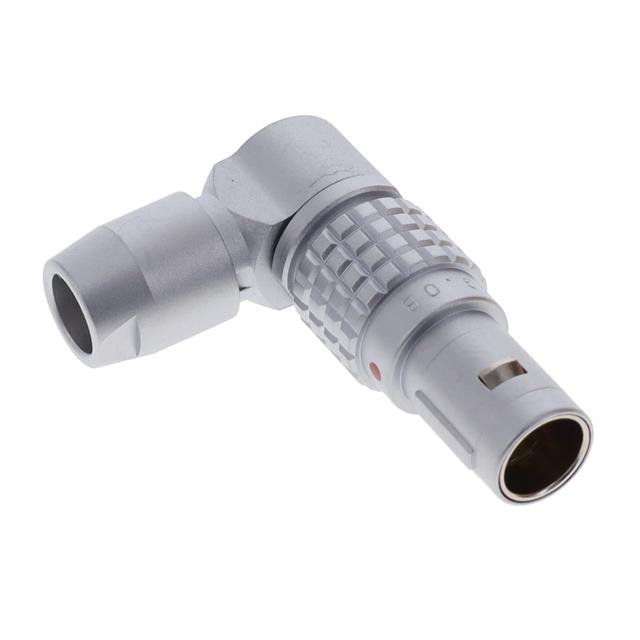

CONN PLUG FEMALE 2P RA SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FSG.0B.302.CLAD52
ActiveLEMO
CONN PLUG FEMALE 2P RA SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | FSG.0B.302.CLAD52 | FSG.0B Series |
|---|---|---|
| Backshell Material, Plating | Brass, Chrome | Brass, Chrome |
| Cable Opening [diameter] | 0.205 in, 0.165 in | 0.165 - 0.205 in |
| Cable Opening [diameter] | 4.2 mm | 4.2 mm |
| Cable Opening [diameter] | 5.2 mm | 5.2 mm |
| Color | Silver | Silver |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | 10 A | 7 - 10 A |
| Fastening Type | Detent Lock, Push-Pull | Detent Lock, Push-Pull |
| Features | Backshell | Backshell |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Number of Positions | 2 | 2 - 4 |
| Operating Temperature [Max] | 200 °C | 200 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | G | G |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 302 | 302 - 304 |
| Shielding | Shielded | Shielded |
FSG.0B Series
CONN PLUG FEMALE 4P RA SLDR CUP
| Part | Shell Size - Insert | Ingress Protection | Current Rating (Amps) | Primary Material | Shielding | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Contact Finish - Mating | Fastening Type | Orientation | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Material | Material Flammability Rating | Mounting Type | Shell Material | Backshell Material, Plating | Insert Material | Features | Shell Finish | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
304 | IP50 | 7 A | Metal | Shielded | 0.165 in, 0.205 in | 4.2 mm | 5.2 mm | Gold | Detent Lock, Push-Pull | G | 4 | -55 °C | 200 °C | Silver | Brass | UL94 V-0 | Free Hanging (In-Line), Right Angle | Brass | Brass, Chrome | Polyetheretherketone (PEEK) | Backshell | Chrome | Male Pins, Plug | |
302 | IP50 | 10 A | Metal | Shielded | 0.165 in, 0.205 in | 4.2 mm | 5.2 mm | Gold | Detent Lock, Push-Pull | G | 2 | -55 °C | 200 °C | Silver | Brass | UL94 V-0 | Free Hanging (In-Line), Right Angle | Brass | Brass, Chrome | Polyetheretherketone (PEEK) | Backshell | Chrome | Male Pins, Plug |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 97.01 | |
| 10 | $ 89.02 | |||
| 25 | $ 85.60 | |||
| 50 | $ 82.74 | |||
| 100 | $ 78.18 | |||
Description
General part information
FSG.0B Series
2 Position Circular Connector Plug, Male Pins Solder Cup
Documents
Technical documentation and resources
