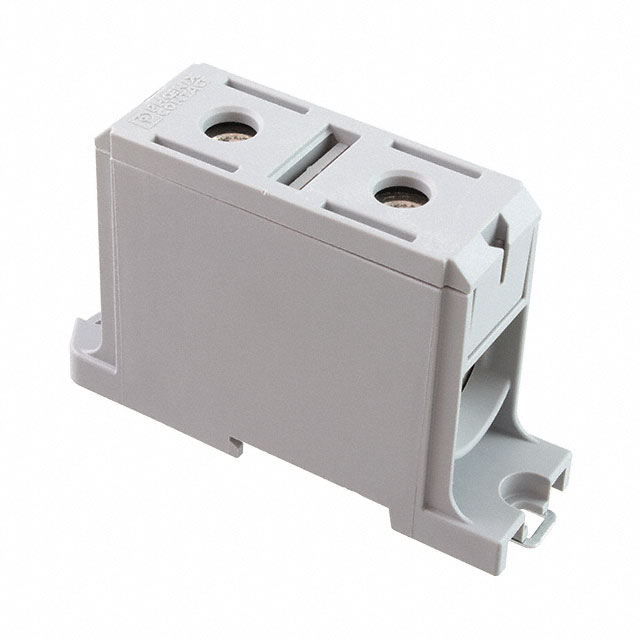

DIN Rail Terminal Blocks UBAL 95 FE Term Block;1POS;220A
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 1086498 | UBAL Series |
|---|---|---|
| Color | Gray | Gray, Green, Yellow, Brown, Black, Blue |
| Current - IEC | 290 A | 145 - 380 A |
| For Use With/Related Products | - | CLIPLINE UBAL Series |
| Material - Insulation | Nylon, Polyamide (PA) | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Number of Levels | 1 | 1 |
| Number of Positions | 2 | 2 |
| Stripping Length | 30 mm | 23 - 43 mm |
| Terminal - Width [y] | 30.5 mm | 19.2 - 37.5 mm |
| Termination Style | Screw | Screw |
| Type | Feed Through | Feed Through, Cover |
| Voltage - IEC | 1 kV | 1 kV |
| Wire Gauge or Range - AWG [Max] | 300 AWG | 4 - 300 AWG |
| Wire Gauge or Range - AWG [Min] | 2 AWG | 1 - 4 aught AWG |
| Wire Gauge or Range - mm² [Max] | 150 mm² | 50 - 240 mm² |
| Wire Gauge or Range - mm² [Min] | 35 mm² | 6 - 35 mm² |
DIN Rail Terminal Blocks UBAL 95 FE Term Block;1POS;220A
| Part | Terminal - Width [y] | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Type | Termination Style | Number of Positions | Current - IEC | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Voltage - IEC | Stripping Length | Color | Number of Levels | Material - Insulation | Material Flammability Rating | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1086505 | 37.5 mm | 35 mm² | 240 mm² | Feed Through | Screw | 2 | 380 A | 300 AWG | 3 aught AWG | 1 kV | 43 mm | Gray | 1 | Nylon, Polyamide (PA) | UL94 V-0 | |
Phoenix Contact 1086507 | 37.5 mm | 35 mm² | 240 mm² | Feed Through | Screw | 2 | 380 A | 300 AWG | 3 aught AWG | 1 kV | 43 mm | Green | 1 | Nylon, Polyamide (PA) | UL94 V-0 | |
Phoenix Contact 1086480 | 25.1 mm | Feed Through | Screw | 2 | 220 A | 4 AWG | 4 aught AWG | 1 kV | 27 mm | Yellow | 1 | Nylon, Polyamide (PA) | UL94 V-0 | |||
Phoenix Contact 1090037 | Cover | Yellow | CLIPLINE UBAL Series | |||||||||||||
Phoenix Contact 1086479 | 25.1 mm | Feed Through | Screw | 2 | 220 A | 4 AWG | 4 aught AWG | 1 kV | 27 mm | Brown | 1 | Nylon, Polyamide (PA) | UL94 V-0 | |||
Phoenix Contact 1086470 | 19.2 mm | 6 mm² | 50 mm² | Feed Through | Screw | 2 | 145 A | 6 AWG | 1 aught AWG | 1 kV | 23 mm | Brown | 1 | Nylon, Polyamide (PA) | UL94 V-0 | |
Phoenix Contact 1086468 | 19.2 mm | 6 mm² | 50 mm² | Feed Through | Screw | 2 | 145 A | 6 AWG | 1 aught AWG | 1 kV | 23 mm | Green | 1 | Nylon, Polyamide (PA) | UL94 V-0 | |
Phoenix Contact 1086473 | Cover | Yellow | CLIPLINE UBAL Series | |||||||||||||
Phoenix Contact 1086508 | 37.5 mm | 35 mm² | 240 mm² | Feed Through | Screw | 2 | 380 A | 300 AWG | 3 aught AWG | 1 kV | 43 mm | Black | 1 | Nylon, Polyamide (PA) | UL94 V-0 | |
Phoenix Contact 1086510 | 37.5 mm | 35 mm² | 240 mm² | Feed Through | Screw | 2 | 380 A | 300 AWG | 3 aught AWG | 1 kV | 43 mm | Yellow | 1 | Nylon, Polyamide (PA) | UL94 V-0 |
