1106416-3
ActiveTE Connectivity AMP Connectors

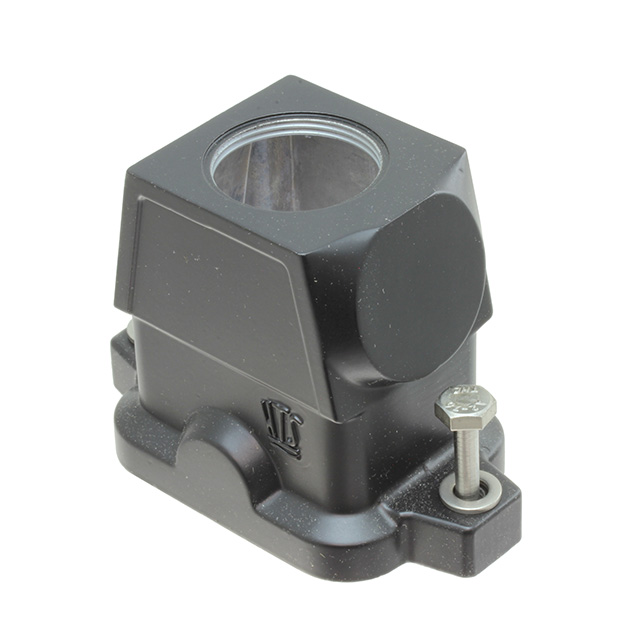

CONN HOOD TOP ENTRY SZ3 M32
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1106416-3
ActiveTE Connectivity AMP Connectors
CONN HOOD TOP ENTRY SZ3 M32
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1106416-3 | 1106416 Series |
|---|---|---|
| Connector Type | Hood | Hood |
| Housing Color | Black | Black |
| Housing Finish | Chromite TCP Passivation | Chromite TCP Passivation |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Lock Location | Screw Locks on Hood | Screw Locks on Hood |
| Size | 3 | 3 |
| Size / Dimension [x] | 96 mm | 96 mm |
| Size / Dimension [x] | 3.78 " | 3.78 " |
| Size / Dimension [y] | 2.087 in | 2.087 in |
| Size / Dimension [y] | 53 mm | 53 mm |
| Size / Dimension [z] | 2.756 in | 2.756 in |
| Size / Dimension [z] | 70 mm | 70 mm |
| Style | Top Entry | Top Entry |
| Thread Size | M32 | M32 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 194.75 | |
1106416 Series
CONN HOOD SIZE 3
| Part | Lock Location | Housing Finish | Housing Color | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size | Connector Type | Housing Material | Thread Size | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1106416-6 | Screw Locks on Hood | Chromite TCP Passivation | Black | 2.087 in | 2.756 in | 53 mm | 96 mm | 70 mm | 3.78 " | 3 | Hood | Aluminum Alloy, Die Cast | ||
TE Connectivity AMP Connectors 1106416-3 | Screw Locks on Hood | Chromite TCP Passivation | Black | 2.087 in | 2.756 in | 53 mm | 96 mm | 70 mm | 3.78 " | 3 | Hood | Aluminum Alloy, Die Cast | M32 | Top Entry |
Description
General part information
1106416 Series
Hood Connector Top Entry M32 3
