ECH508V-04P
ActiveDinkle Corporation, USA
TERM BLK 4POS 5.08MM HDR
ECH508V-04P
ActiveDinkle Corporation, USA
TERM BLK 4POS 5.08MM HDR
Description
General part information
ECH508V-04P

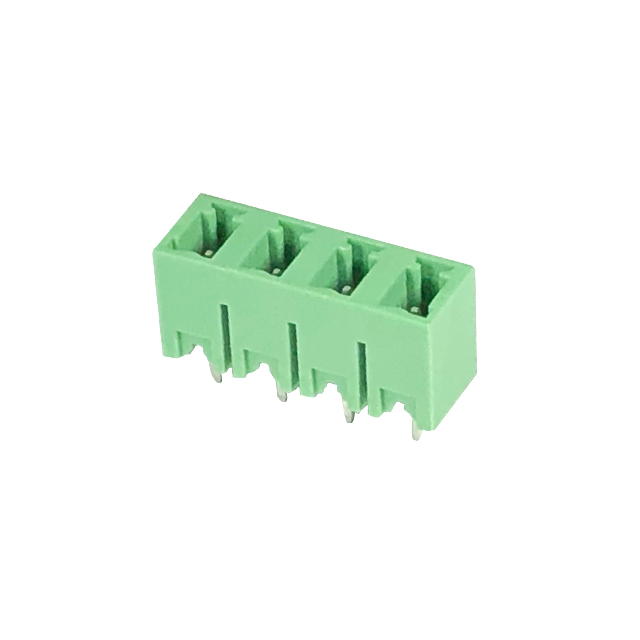

4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | ECH508V-04P |
|---|---|
| Color | Green |
| Current - IEC | 14 A |
| Current - UL | 12 A |
| Header Orientation | Vertical |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 4 |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 5.08 mm |
| Positions Per Level | 4 |
| Termination Style | Solder |
| Type | Shrouded (4 Side), Male Pins, Header |
| Voltage - IEC | 600 A, 600 V |
| Voltage - UL | 300 A, 300 V |
