ANN-MB-00

Active

u-blox

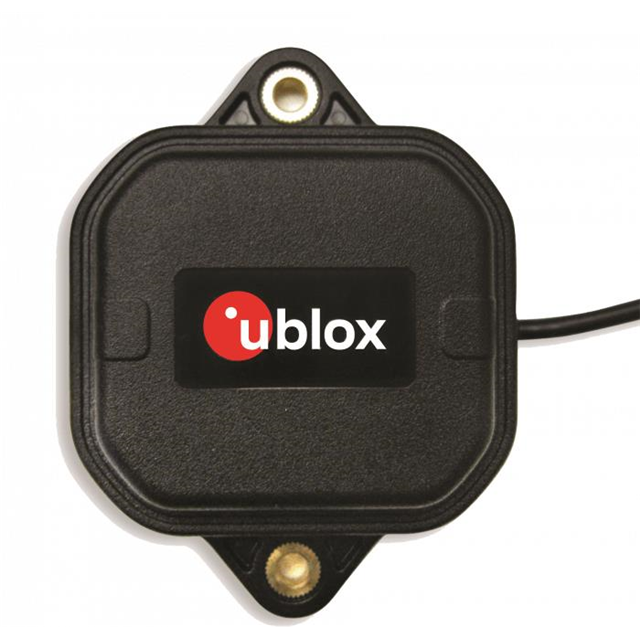

RF ANT GNSS/GPS 1.197-1.249GHZ

Search across all available documentation for this part.

Active

u-blox

RF ANT GNSS/GPS 1.197-1.249GHZ

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA BeiDou, Galileo, GLONASS, GNSS, GPS Module SMA Magnetic

Technical documentation and resources

Specification	ANN-MB-00	ANN-MB Series

Antenna Type	Module	Module
Applications	GLONASS, GPS, GNSS, Beidou, Galileo	GLONASS, GPS, GNSS, Beidou, Galileo
Features	LNA, Cable - 5m	LNA, Cable - 5m
Frequency (Center/Band)	1.223 GHz, 1.582 GHz	1.223 - 1.582 GHz
Frequency Group	UHF	UHF
Frequency Group [Max]	2 GHz	2 GHz
Frequency Group [Min]	1 GHz	1 GHz
Frequency Range [Max]	1.249 GHz, 1.606 GHz	1.249 - 1.606 GHz
Frequency Range [Min]	1.559 GHz, 1.197 GHz	1.197 - 1.559 GHz
Gain	28 dBi	28 dBi
Height (Max) [Max] [z]	0.886 in	0.886 in
Height (Max) [Max] [z]	22.5 mm	22.5 mm
Mounting Type	Magnetic	Magnetic
Number of Bands	2	2
RF Family/Standard	Navigation	Navigation
Termination	SMA	SMA, MCX
VSWR	2	2

Part	Frequency Group [Max]	Frequency Group [Min]	Frequency Group	VSWR	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Mounting Type	Applications	Number of Bands	Features	Frequency Range [Min]	Frequency Range [Max]	Antenna Type	Termination	Gain	RF Family/Standard	Frequency (Center/Band)
u-blox ANN-MB-00	2 GHz	1 GHz	UHF	2	0.886 in	22.5 mm	Magnetic	Beidou, Galileo, GLONASS, GNSS, GPS	2	Cable - 5m, LNA	1.197 GHz, 1.559 GHz	1.249 GHz, 1.606 GHz	Module	SMA	28 dBi	Navigation	1.223 GHz, 1.582 GHz
u-blox ANN-MB-02	2 GHz	1 GHz	UHF	2	0.886 in	22.5 mm	Magnetic	Beidou, Galileo, GLONASS, GNSS, GPS	2	Cable - 5m, LNA	1.197 GHz, 1.559 GHz	1.249 GHz, 1.606 GHz	Module	MCX	28 dBi	Navigation	1.223 GHz, 1.582 GHz
