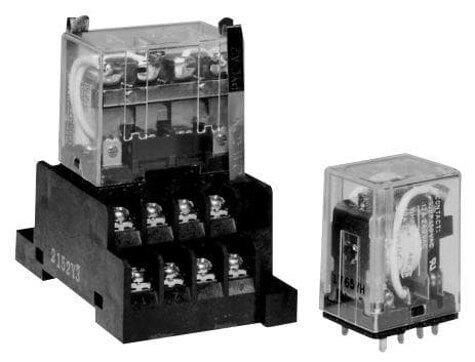

Specification	LY2-D-DC24

Approval Agency	TUV, CSA, UR, CE
Coil Current	36.9 mA
Coil Resistance	650 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	Form, 2 Form C, C, 2, DPDT
Contact Material	Silver Alloy
Contact Rating (Current)	10 A
Features	Diode
Load - Max Switching (Apparent Power)	2500 VA
Load - Max Switching (Real Power)	1250 W
Mounting Type	Socketable
Must Operate Voltage	19.2 V
Must Release Voltage	2.4 V
Operate Time	25 ms
Operating Temperature (Max)	55 °C
Operating Temperature (Min)	-25 °C
Relay Type	General Purpose
Release Time	25 ms
Switching Voltage AC (Max)	250 VAC
Switching Voltage DC (Max)	125 VDC
Termination Style	Plug In

LY Series

Part	Contact Material	Coil Current	Coil Type	Contact Form	Approval Agency	Operating Temperature (Min)	Operating Temperature (Max)	Release Time	Operate Time	Load - Max Switching (Real Power)	Load - Max Switching (Apparent Power)	Contact Rating (Current)	Termination Style	Switching Voltage DC (Max)	Switching Voltage AC (Max)	Relay Type	Must Operate Voltage	Mounting Type	Coil Voltage	Must Release Voltage	Coil Resistance	Features	Pin Count
Omron Automation and Safety LY2ZF DC12	Silver Alloy	0.075 A	Non Latching	2 2 Form C C DPDT Form	CE CSA TUV UR	-25 °C	55 °C	25 ms	25 ms	625 W	1250 VA	5 A	Plug In	125 VDC	250 VAC	General Purpose	9.6 VDC	Chassis Mount	12 VAC	1.2 V	160 Ohms
Omron Automation and Safety LY2ZN-DC24	Silver Alloy	36.9 mA	Non Latching	2 2 Form C C DPDT Form	CE CSA TUV UR	-25 °C	55 °C	25 ms	25 ms	625 W	1250 VA	5 A	Plug In	125 VDC	250 VAC	General Purpose	19.2 V	Socketable	24 VDC	2.4 V		Lighted Indicator
Omron Automation and Safety LY2N-AC6	Silver Alloy	183 mA	Non Latching	2 2 Form C C DPDT Form	CE CSA TUV UR	-25 °C	55 °C	25 ms	25 ms	1250 W	2500 VA	10 A	Plug In	125 VDC	250 VAC	General Purpose	4.8 V	Socketable	6 VAC	1.8 VAC		Lighted Indicator
Omron Automation and Safety LY4-D DC24	Silver Alloy	69 mA	Non Latching	4 C Form PDT	CE CSA TUV UR	-25 °C	40 °C	25 ms	25 ms	1250 W	2500 VA	10 A	Plug In	125 VDC	250 VAC	General Purpose	19.2 V	Socketable	24 VDC	2.4 V	350 Ohms	Diode	4
Omron Automation and Safety LY1-AC110/120	Silver Alloy	9.2 mA	Non Latching	1 C Form SPDT	CE CSA TUV UR	-25 °C	55 °C	25 ms	25 ms	1875 W	3750 VA	15 A	Plug In	125 VDC	250 VAC	General Purpose	96 V	Socketable	120 V	36 VDC	4.43 kOhms
Omron Automation and Safety LY3-0-DC24	Silver Alloy	58.6 mA	Non Latching	3 Form C PDT	CE CSA TUV UR	-25 °C	55 °C	25 ms	25 ms	1250 W	2500 VA	10 A	PC Pin	125 VDC	250 VAC	General Purpose	19.2 V	Through Hole	24 VDC	2.4 V			3 pins
Omron Automation and Safety LY1-AC24	Silver Alloy	46 mA	Non Latching	1 C Form SPDT	CE CSA TUV UR	-25 °C	55 °C	25 ms	25 ms	1875 W	3750 VA	15 A	Plug In	125 VDC	250 VAC	General Purpose	19.2 V	Socketable	24 VDC	7.2 VAC	180 Ohms
Omron Automation and Safety LY2Z-0-DC24	Silver Alloy	36.9 mA	Non Latching	2 2 Form C C DPDT Form	CE CSA TUV UR	-25 °C	55 °C	25 ms	25 ms	625 W	1250 VA	5 A	PC Pin	125 VDC	250 VAC	General Purpose	19.2 V	Through Hole	24 VDC	2.4 V	650 Ohms
Omron Automation and Safety LY1F-AC24	Silver Alloy	46 mA	Non Latching	1 C Form SPDT	CE CSA TUV UR	-25 °C	55 °C	25 ms	25 ms	1875 W	3750 VA	15 A	Plug In	125 VDC	250 VAC	General Purpose	19.2 V	Chassis Mount	24 VDC	7.2 VAC
Omron Automation and Safety LY3-AC24	Silver Alloy	67 mA	Non Latching	3 Form C PDT	CE CSA TUV UR	-25 °C	55 °C	25 ms	25 ms	1250 W	2500 VA	10 A	Plug In	125 VDC	250 VAC	General Purpose	19.2 V	Socketable	24 VDC	7.2 VAC	100 Ohms		3 pins
