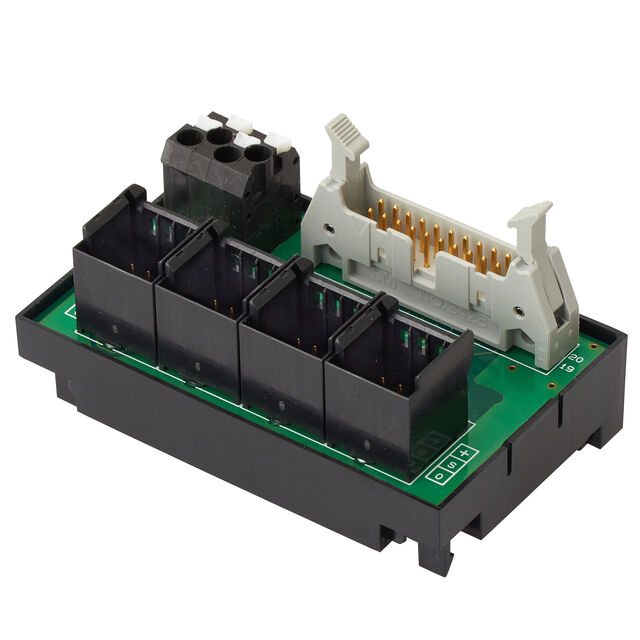

3ST16-C3A2-P00
Active3M Electronic Specialty
I/O CONNECTORS 3M MINI STACK CONNECTOR INTERFACE UNIT, 16AWG, 16 CHANNELS, BLACK
3ST16-C3A2-P00
Active3M Electronic Specialty
I/O CONNECTORS 3M MINI STACK CONNECTOR INTERFACE UNIT, 16AWG, 16 CHANNELS, BLACK
Description
General part information
3ST16-C3A2-P00
16 Position Interface Module Terminal Blocks - Header To Rectangular, Male 16-24 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 3ST16-C3A2-P00 |
|---|---|
| Control Side Cable Retainer Type | Latches |
| Control Side Connection Gender | Male |
| Control Side Connection Shape | Rectangular |
| Length | 2.992 in |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Positions / Poles | 16 |
| Process Side Connection | Header, Terminal Blocks |
| Voltage - Rated | 32 V |
| Width | 1.89 in |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
