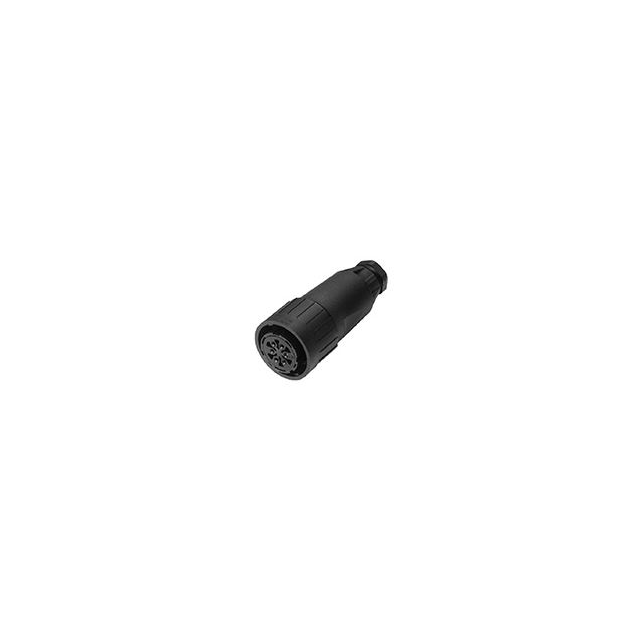

C01610D0190042

Active

Amphenol Tuchel Industrial

CONN PLUG HSG FMALE 20POS INLINE

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG HSG FMALE 20POS INLINE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	C01610D0190042	C01610D019 Series

Connector Type	Plug Housing	Plug Housing
Contact Shape	Circular	Circular
Contact Size	1.5 mm	1.5 mm
Contact Type	Crimp	Crimp
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Coupling Nut, Backshell	Coupling Nut, Backshell
Housing Color	Black	Black
Includes	1 Backshell, 1 Cage Clamp, 1 Cable Nut, 1 Connector, 1 Gasket	1 Backshell, 1 Cage Clamp, 1 Cable Nut, 1 Connector, 1 Gasket
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions [custom]	PE	PE
Number of Positions [custom]	20, 19	19 - 20
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	N	N
Shell Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	2	2
Shielding	Unshielded	Unshielded
Type	For Female Sockets	For Female Sockets

CONN PLUG HSG FMALE 20POS INLINE

Part	Includes	Shell Material	Orientation	Type	Contact Shape	Number of Positions [custom]	Number of Positions [custom]	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Ingress Protection	Material Flammability Rating	Connector Type	Contact Type	Contact Size	Features	Mounting Type	Fastening Type	Shell Size - Insert	Note
Amphenol Tuchel Industrial C01610D0190042	1 Backshell, 1 Cable Nut, 1 Cage Clamp, 1 Connector, 1 Gasket	Polyamide (PA66), Nylon 6/6	N	For Female Sockets	Circular	PE	19, 20	Unshielded	125 °C	-40 °C	Black	IP65 - Dust Tight, Water Resistant	UL94 V-0	Plug Housing	Crimp	1.5 mm	Backshell, Coupling Nut	Free Hanging (In-Line)	Bayonet Lock	2	Contacts Not Included
Amphenol Tuchel Industrial C01610D0190032	1 Backshell, 1 Cable Nut, 1 Cage Clamp, 1 Connector, 1 Gasket	Polyamide (PA66), Nylon 6/6	N	For Female Sockets	Circular	PE	19, 20	Unshielded	125 °C	-40 °C	Black	IP65 - Dust Tight, Water Resistant	UL94 V-0	Plug Housing	Crimp	1.5 mm	Backshell, Coupling Nut	Free Hanging (In-Line)	Bayonet Lock	2	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 24.62

General part information

20 (19 + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
