Description
General part information

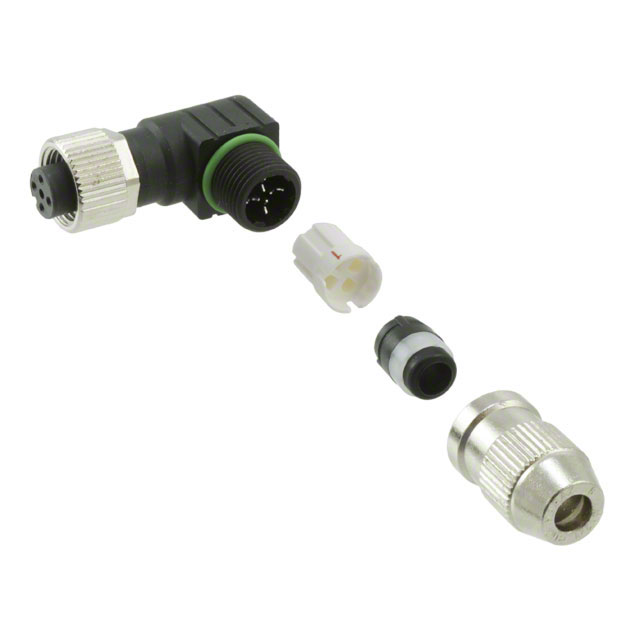

21011405091
4 Position Circular Connector Receptacle, Female Sockets IDC
Technical Specifications
Parameters and characteristics for this part
| Specification | 21011405091 |
|---|---|
| Color | Black, Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating | 4 A |
| Fastening Type | Threaded |
| Features | Coupling Nut |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | PA, Nylon, Polyamide |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M12-4 |
| Shielding | Unshielded |
| Termination | IDC |
| Voltage Rating | 32 V |
