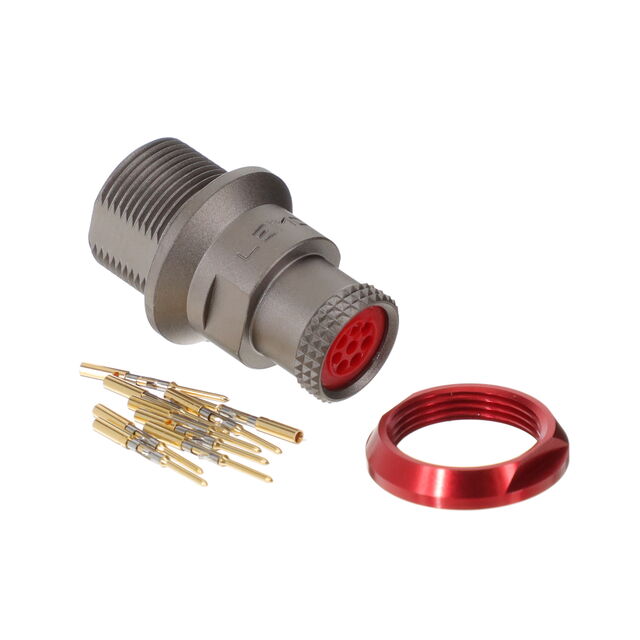

PES.1F.308.XLC

Active

LEMO

CONN RCPT MALE 8POS GOLD CRIMP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT MALE 8POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	PES.1F.308.XLC

Applications	Aerospace
Cable Opening [custom]	0.421 in
Cable Opening [custom]	10.7 mm
Color	Gray
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Material	Brass
Current Rating (Amps)	5 A
Fastening Type	Push-Pull
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	8
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-15 °C
Orientation	S
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	308
Shielding	Shielded
Termination	Crimp

CONN RCPT MALE 8POS GOLD CRIMP

Part	Color	Cable Opening [custom]	Cable Opening [custom]	Shell Size - Insert	Insert Material	Shell Finish	Orientation	Contact Material	Connector Type	Shell Material	Current Rating (Amps)	Termination	Contact Finish - Mating	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Primary Material	Number of Positions	Material Flammability Rating	Shielding	Fastening Type	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection
LEMO PES.1F.308.XLC	Gray	0.421 in	10.7 mm	308	Polyetheretherketone (PEEK)	Nickel	S	Brass	Male Pins, Receptacle	Aluminum Alloy	5 A	Crimp	Gold	Aerospace	1 µm	39.4 µin	Metal	8	UL94 V-0	Shielded	Push-Pull	Bulkhead - Front Side Nut	200 °C	-15 °C	IP67 - Dust Tight, Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Receptacle, Male Pins Crimp
