LF2D-EN2F-2W-A

Active

IDEC Corporation

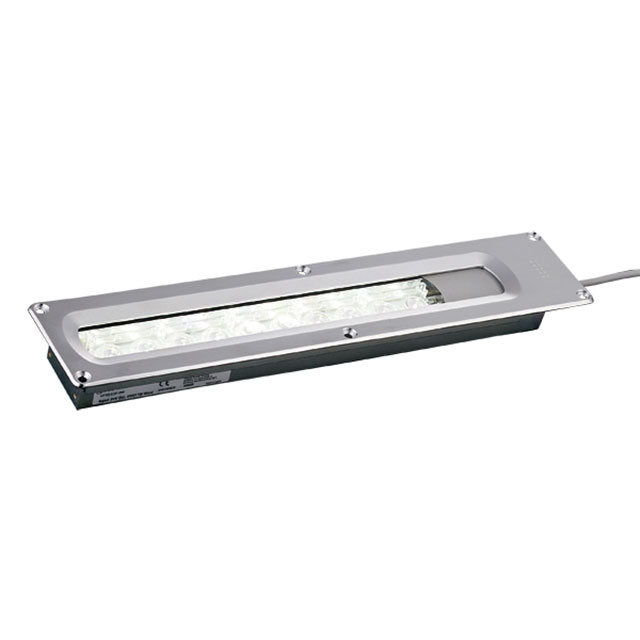

LED LIGHT BAR, WHITE, 1530 LM, 10 W, 24 VDC, 389 MM, IP67F

Search across all available documentation for this part.

Active

IDEC Corporation

LED LIGHT BAR, WHITE, 1530 LM, 10 W, 24 VDC, 389 MM, IP67F

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LF2D-EN2F-2W-A	LF2D-EN2 Series

Approval Agency	cULus, CE	cULus, CE
Housing Material	Aluminum (Al)	Aluminum (Al)
Illumination Color	White, Cool	White, Cool
Ingress Protection	IP67G - Dust Tight, Oil Resistant, Waterproof	IP67G - Dust Tight, Oil Resistant, Waterproof
Length	389 mm	389 mm
Length	15.31 "	15.31 "
Lens Type	Flat, Clear	Flat, Clear
Luminous Flux	1530 lm	1530 lm
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Power - Rated	10 W	10 W
Profile (W x H) [x]	80 mm	80 mm
Profile (W x H) [x]	3.15 "	3.15 "
Profile (W x H) [y]	1.33 "	1.33 "
Profile (W x H) [y]	33.7 mm	33.7 mm
Rated Life	50000 Hours	50000 Hours
Termination Style	Cable Leads	Cable Leads
Voltage - Supply	24 VDC	24 VDC

LED LIGHT BAR, WHITE, 1530 LM, 10 W, 24 VDC, 389 MM, IP67F

Part	Luminous Flux	Housing Material	Lens Type	Ingress Protection	Power - Rated	Illumination Color	Rated Life	Profile (W x H) [x]	Profile (W x H) [y]	Profile (W x H) [y]	Profile (W x H) [x]	Length	Length	Voltage - Supply	Approval Agency	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]
IDEC Corporation LF2D-EN2F-2W-A	1530 lm	Aluminum (Al)	Clear, Flat	IP67G - Dust Tight, Oil Resistant, Waterproof	10 W	Cool, White	50000 Hours	80 mm	1.33 "	33.7 mm	3.15 "	389 mm	15.31 "	24 VDC	CE, cULus	Cable Leads	55 °C	-30 ░C
IDEC Corporation LF2D-EN2F-2W-450	1530 lm	Aluminum (Al)	Clear, Flat	IP67G - Dust Tight, Oil Resistant, Waterproof	10 W	Cool, White	50000 Hours	80 mm	1.33 "	33.7 mm	3.15 "	389 mm	15.31 "	24 VDC	CE, cULus	Cable Leads	55 °C	-30 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED LIGHT BAR, WHITE, 1530 LM, 10 W, 24 VDC, 389 MM, IP67F
