2-1102612-5
ActiveTE Connectivity AMP Connectors

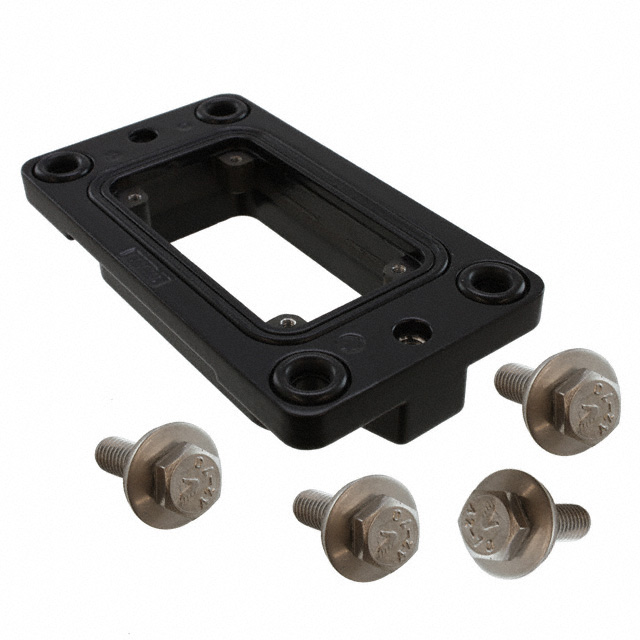

CONN BASE BOTTOM ENTRY SZ4
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-1102612-5
ActiveTE Connectivity AMP Connectors
CONN BASE BOTTOM ENTRY SZ4
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-1102612-5 |
|---|---|
| Connector Type | Base - Panel Mount |
| Housing Color | Black |
| Housing Finish | Aluminum Oxide |
| Housing Material | Aluminum Alloy, Die Cast |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Lock Location | Screw Locks on Hood |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Size | 4 |
| Size / Dimension [x] | 109 mm |
| Size / Dimension [x] | 4.291 in |
| Size / Dimension [y] | 60 mm |
| Size / Dimension [y] | 2.362 in |
| Size / Dimension [z] | 22 mm |
| Size / Dimension [z] | 0.866 " |
| Style | Bottom Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 187.18 | |
| 10 | $ 178.20 | |||
1102612 Series
CONN BASE BOTTOM ENTRY SZ4
| Part | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Ingress Protection | Connector Type | Housing Material | Lock Location | Operating Temperature [Min] | Operating Temperature [Max] | Housing Color | Size | Style | Housing Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-1102612-5 | 22 mm | 109 mm | 60 mm | 2.362 in | 0.866 " | 4.291 in | IP68 - Dust Tight, Waterproof | Base - Panel Mount | Aluminum Alloy, Die Cast | Screw Locks on Hood | -40 °C | 80 C | Black | 4 | Bottom Entry | Aluminum Oxide |
Description
General part information
1102612 Series
Base - Panel Mount Connector Bottom Entry 4 IP68 - Dust Tight, Waterproof
