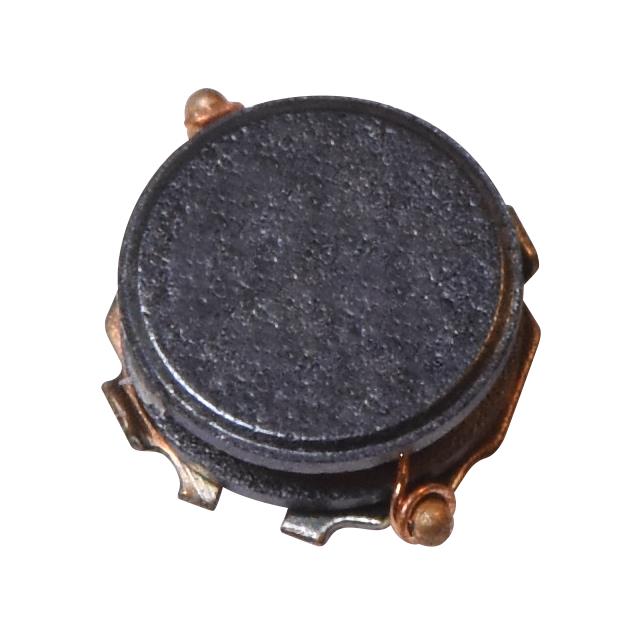

F1B1-303015-150M
ActiveSignal Transformer
FIXED IND 15.0UH 600MA 700 MOHM
F1B1-303015-150M
ActiveSignal Transformer
FIXED IND 15.0UH 600MA 700 MOHM
Description
General part information
F1B1-303015-150M
15 µH Unshielded Drum Core, Wirewound Inductor 600 mA 700Ohm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | F1B1-303015-150M |
|---|---|
| Current - Saturation (Isat) | 0.8 mA |
| Current Rating | 600 mA |
| DC Resistance (DCR) (Max) | 700 Ohm |
| Height - Seated (Max) | 0.059 in |
| Inductance | 15 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.118 in |
| Size / Dimension Width | 0.118 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
