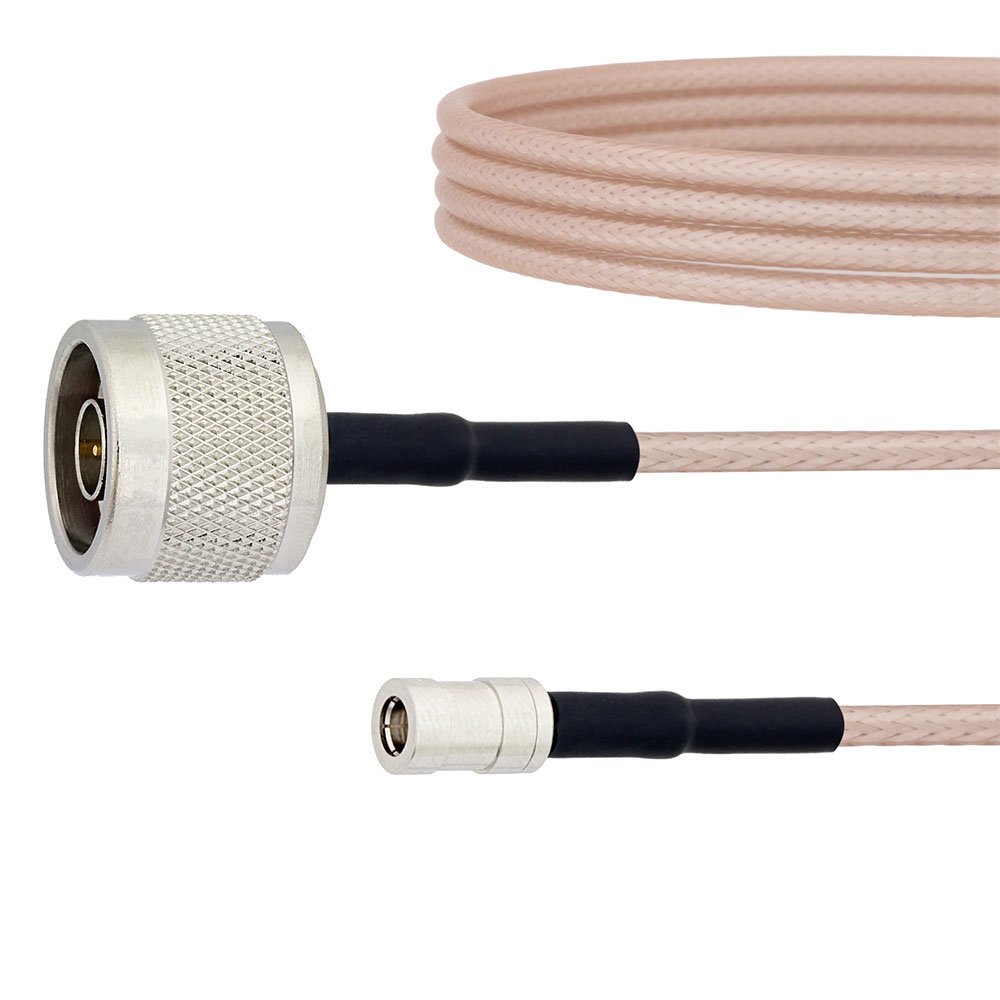

FMC00309-150CM
ActiveFairview Microwave
CBL ASSY TYPE NPLUG-SMBPLUG 59.0
FMC00309-150CM
ActiveFairview Microwave
CBL ASSY TYPE NPLUG-SMBPLUG 59.0
Description
General part information
FMC00309-150CM
Cable Assembly Coaxial
Technical Specifications
Parameters and characteristics for this part
| Specification | FMC00309-150CM |
|---|---|
| 1st Connector | SMB Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 316 |
| Color | Tan |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 3 GHz |
| Length | 59.1 in |
| Length (ft) | 4.9 ft |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMB, N-Type |
