150112CH8OP
ActiveKanebridge
HEX CAP SCREW - HEX HEAD - GRADE
150112CH8OP
ActiveKanebridge
HEX CAP SCREW - HEX HEAD - GRADE
Description
General part information
150112CH8OP

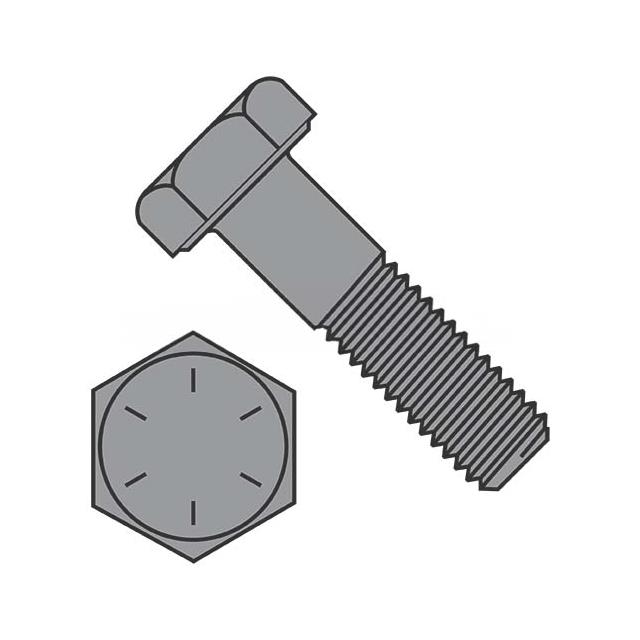

1-1/2"-6 Hex Head Hex Cap Screw External Hex Drive Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 150112CH8OP |
|---|---|
| Drive Type | External Hex, Hex Socket |
| Features | Standard |
| Head Diameter | 2.25 in |
| Head Height | 0.938 in |
| Length - Below Head | 7 in |
| Length - Overall | 7.938 in |
| Material | Steel |
| Plating | Plain |
| Screw Head Type | Hex Head |
| Thread Pitch (TPI) | 6 TPI |
| Thread Size (Nominal) | 1.5 in |
| Type | Hex Cap Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
