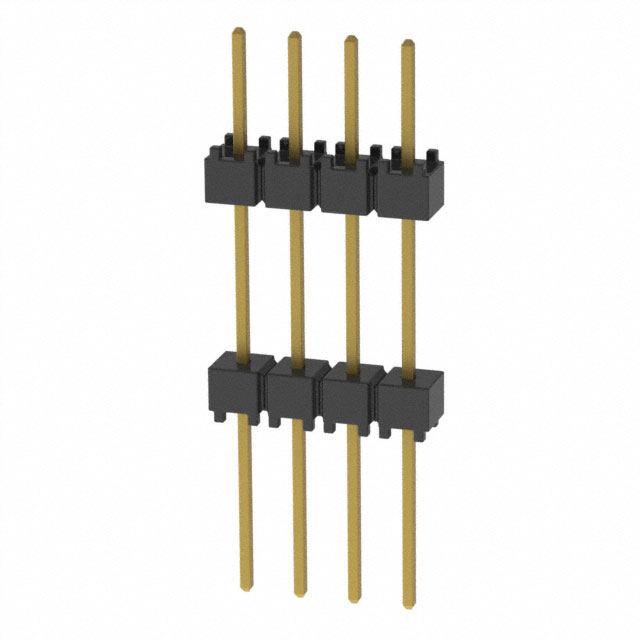

EW-04-12-G-S-500

Active

Samtec Inc.

CONN HDR 4POS 0.1 STACK T/H GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet XW Print

EW-04-12-G-S-500

Active

Samtec Inc.

CONN HDR 4POS 0.1 STACK T/H GOLD

Deep-Dive with AI

DocumentsDatasheet XW Print

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EW-04-12-G-S-500

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin [x]	1.03 in
Length - Overall Pin [x]	26.162 mm
Length - Post (Mating) [x]	0.2 in
Length - Post (Mating) [x]	5.08 mm
Length - Stack Height [x]	0.5 in
Length - Stack Height [x]	12.7 mm
Length - Tail	0.33 in
Length - Tail	8.382 mm
Mounting Type	Through Hole
Number of Positions	4
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

EW-04-12 Series

Part	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Number of Positions	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Tail	Length - Tail	Contact Finish - Post (Mating)	Mounting Type	Length - Overall Pin [x]	Length - Overall Pin [x]	Termination	Length - Stack Height [x]	Length - Stack Height [x]	Color	Pitch [x]	Pitch [x]	Number of Rows	Row Spacing [x]	Row Spacing	Length - Stack Height [z]	Length - Stack Height [z]
Samtec Inc. EW-04-12-G-S-600	0.25 Ám	10 Áin	4	0.1 in	2.54 mm	0.33 in	8.382 mm	Gold	Through Hole	1.03 in	26.162 mm	Solder	0.6 in	15.24 mm	Black	2.54 mm	0.1 in	1
Samtec Inc. EW-04-12-T-D-200			8	0.5 in	12.7 mm	0.33 in	8.382 mm	Tin	Through Hole	1.03 in	26.162 mm	Solder			Black	2.54 mm	0.1 in	2	0.1 in	2.54 mm
Samtec Inc. EW-04-12-T-S-600			4	0.1 in	2.54 mm	0.33 in	8.382 mm	Tin	Through Hole	1.03 in	26.162 mm	Solder	0.6 in	15.24 mm	Black	2.54 mm	0.1 in	1
Samtec Inc. EW-04-12-F-D-530	0.076 Ám	3 Áin	8	0.17 in	4.318 mm	0.33 in	8.382 mm	Gold	Through Hole	1.03 in	26.162 mm	Solder			Black	2.54 mm	0.1 in	2	0.1 in	2.54 mm	13.462 mm	0.53 in
Samtec Inc. EW-04-12-L-S-580	0.25 Ám	10 Áin	4	0.12 in	3.048 mm	0.33 in	8.382 mm	Gold	Through Hole	1.03 in	26.162 mm	Solder	0.58 in	14.732 mm	Black	2.54 mm	0.1 in	1
Samtec Inc. EW-04-12-G-D-275	0.25 Ám	10 Áin	8			0.33 in	8.382 mm	Gold	Through Hole	1.03 in	26.162 mm	Solder	0.275 in	6.985 mm	Black	2.54 mm	0.1 in	2	0.1 in	2.54 mm
Samtec Inc. EW-04-12-G-S-550	0.25 Ám	10 Áin	4	0.15 in	3.81 mm	0.33 in	8.382 mm	Gold	Through Hole	1.03 in	26.162 mm	Solder	0.55 in	13.97 mm	Black	2.54 mm	0.1 in	1
Samtec Inc. EW-04-12-F-D-370	0.076 Ám	3 Áin	8	0.33 in	8.382 mm	0.33 in	8.382 mm	Gold	Through Hole	1.03 in	26.162 mm	Solder			Black	2.54 mm	0.1 in	2	0.1 in	2.54 mm
Samtec Inc. EW-04-12-G-D-315	0.25 Ám	10 Áin	8	0.385 in	9.779 mm	0.33 in	8.382 mm	Gold	Through Hole	1.03 in	26.162 mm	Solder	0.315 in	8 mm	Black	2.54 mm	0.1 in	2	0.1 in	2.54 mm
Samtec Inc. EW-04-12-G-S-500	0.25 Ám	10 Áin	4	0.2 in	5.08 mm	0.33 in	8.382 mm	Gold	Through Hole	1.03 in	26.162 mm	Solder	0.5 in	12.7 mm	Black	2.54 mm	0.1 in	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.38

Description

General part information

EW-04-12 Series

4 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole
