Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | D-602-0146 | D-602 Series |
|---|---|---|
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 50 µin | 50 µin |
| Contact Finish Thickness | 1.27 µm | 1.27 µm |
| Contact Material | Beryllium Copper | Copper Alloy, Beryllium Copper |
| Contact Termination | Solder | Solder |
| Pin or Socket | Socket Center, Coax, Assembly | Pin Center, Assembly, Coax, Socket Center |
| Type | Coaxial | Coaxial |
| Wire Gauge [Max] | 26 AWG | 26 AWG |
| Wire Gauge [Min] | 22 AWG | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 59.73 | |
| 10 | $ 49.30 | |||
| 25 | $ 45.82 | |||
| 50 | $ 43.30 | |||
| 100 | $ 42.35 | |||
D-602 Series
CONN PIN COAX 22-26AWG GOLD SLDR
| Part | Contact Material | Contact Finish | Pin or Socket | Contact Termination | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish Thickness | Contact Finish Thickness | Type |
|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors D-602-0127CS232 | Copper Alloy | Gold | Assembly, Coax, Pin Center | Solder | 22 AWG | 26 AWG | |||
TE Connectivity AMP Connectors D-602-0146 | Beryllium Copper | Gold | Assembly, Coax, Socket Center | Solder | 22 AWG | 26 AWG | 50 µin | 1.27 µm | Coaxial |
Description
General part information
D-602 Series

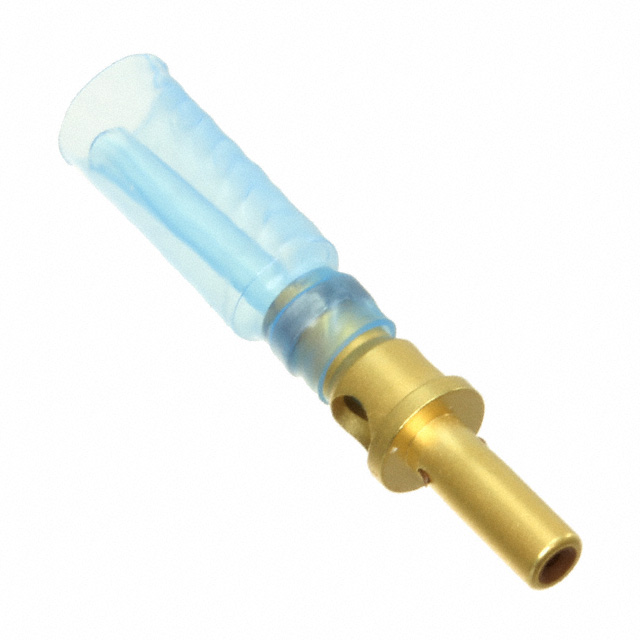

Coax, Socket Center, Assembly Contact Gold Solder 22-26 AWG Coaxial
