1-963616-1
ActiveTE Connectivity AMP Connectors

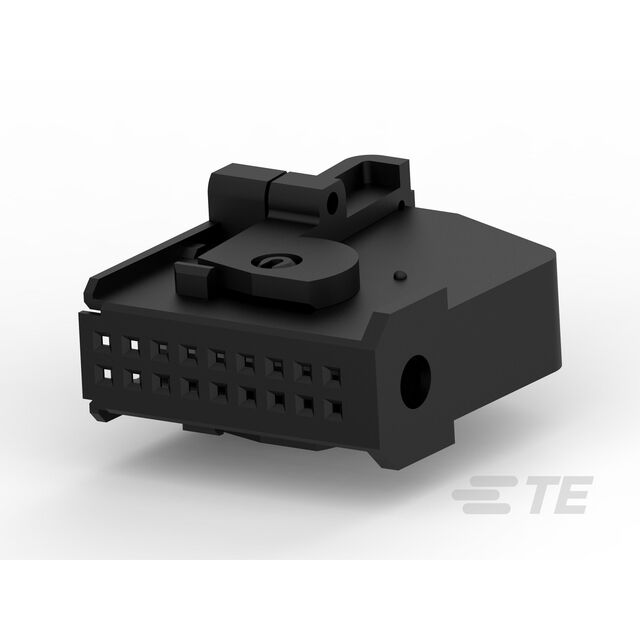

MQS ABDECKKAPPE 18P
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-963616-1
ActiveTE Connectivity AMP Connectors
MQS ABDECKKAPPE 18P
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-963616-1 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Lever Lock |
| Features | Shielded |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 18 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.74 | |
| 10 | $ 1.52 | |||
| 25 | $ 1.45 | |||
| 50 | $ 1.42 | |||
| 100 | $ 1.36 | |||
| 250 | $ 1.23 | |||
| 500 | $ 1.13 | |||
| 2000 | $ 0.94 | |||
| 4000 | $ 0.90 | |||
963616 Series
MQS ABDECKKAPPE 18P
| Part | Contact Type | Contact Termination | Number of Positions | Insulation Material | Number of Rows | Features | Operating Temperature [Min] | Operating Temperature [Max] | Color | Pitch [x] | Pitch [x] | Mounting Type | Connector Type | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-963616-1 | Female Socket | Crimp | 18 | Polybutylene Terephthalate (PBT), Glass Filled | 2 | Shielded | -40 °C | 105 ░C | Black | 2.54 mm | 0.1 in | Free Hanging (In-Line) | Receptacle | Lever Lock |
Description
General part information
963616 Series
18 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
