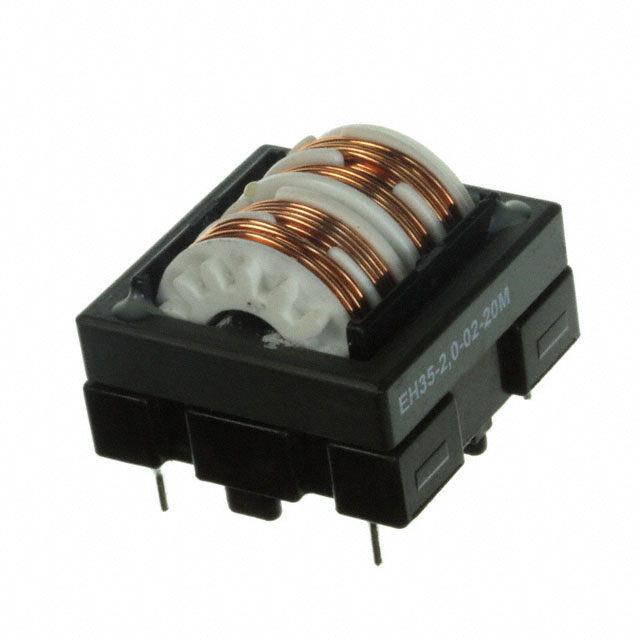

Specification	EH35-2.0-02-20M

Current Rating (Max)	2 A
DC Resistance (DCR) (Max)	150 mOhm
DC Resistance (DCR) (Typ)	150 mOhm
Filter Type	Power Line
Height (Max)	1.13 in
Inductance	20 mH
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-25 °C
Package / Case	4 PC Pin, Horizontal
Package Leads	4 Leads
Package Name	Horizontal
Size / Dimension Length	1.417 in
Size / Dimension Width	1.417 in
Voltage Rating - AC	250 V

Schaffner EH/EV-Series Series

...

Part	Size / Dimension Width	Size / Dimension Length	Inductance	Filter Type	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Voltage Rating - AC	Height (Max)	Current Rating (Max)	Package Leads	Package / Case	Package Name	Number of Lines	DC Resistance (DCR) (Max)	DC Resistance (DCR) (Typ)
TE Connectivity AMP Connectors EH24-0.5-02-44M	0.945 in	0.945 in	44 mH	Power Line	-25 °C	100 °C	Through Hole	250 V	0.827 in	500 mA	4 Leads	4 PC Pin Horizontal	Horizontal	2	1.25 Ohm	1.25 Ohm
TE Connectivity AMP Connectors EH20-1.0-02-3M9	0.827 in	0.827 in	3.9 mH	Power Line	-25 °C	100 °C	Through Hole	250 V	0.74 in	1 A	4 Leads	4 PC Pin Horizontal	Horizontal	2	168 mOhm	168 mOhm
TE Connectivity AMP Connectors EH28-1.0-02-36M	1.102 in	1.102 in	36 mH	Power Line	-25 °C	100 °C	Through Hole	250 V	0.941 in	1 A	4 Leads	4 PC Pin Horizontal	Horizontal	2	591 mOhm	591 mOhm
TE Connectivity AMP Connectors EV24-4.0-02-0M5	0.685 in	0.969 in	500 µH	Power Line	-25 °C	100 °C	Through Hole	250 V	1.185 in	4 A	4 Leads	4 PC Pin Vertical	Vertical	2	16 mOhm	16 mOhm
TE Connectivity AMP Connectors EH28-2.0-02-11M	1.102 in	1.102 in	11 mH	Power Line	-25 °C	100 °C	Through Hole	250 V	0.941 in	2 A	4 Leads	4 PC Pin Horizontal	Horizontal	2	162 mOhm	162 mOhm
TE Connectivity AMP Connectors EH28-5.0-02-1M1	1.102 in	1.102 in	1.1 mH	Power Line	-25 °C	100 °C	Through Hole	250 V	0.941 in	5 A	4 Leads	4 PC Pin Horizontal	Horizontal	2	27 mOhm	27 mOhm
TE Connectivity AMP Connectors EH24-1.0-02-10M	0.945 in	0.945 in	10 mH	Power Line	-25 °C	100 °C	Through Hole	250 V	0.827 in	1 A	4 Leads	4 PC Pin Horizontal	Horizontal	2	244 mOhm	244 mOhm
TE Connectivity AMP Connectors EV35-1.0-02-90M	0.965 in	1.417 in	90 mH	Power Line	-25 °C	100 °C	Through Hole	250 V	1.681 in	1 A	4 Leads	4 PC Pin Vertical	Vertical	2	628 mOhm	628 mOhm
TE Connectivity AMP Connectors EH28-2.0-02-11M	1.102 in	1.102 in	11 mH	Power Line	-25 °C	100 °C	Through Hole	250 V	0.941 in	2 A	4 Leads	4 PC Pin Horizontal	Horizontal	2	162 mOhm	162 mOhm
TE Connectivity AMP Connectors EH24-2.0-02-2M5	0.945 in	0.945 in	2.5 mH	Power Line	-25 °C	100 °C	Through Hole	250 V	0.827 in	2 A	4 Leads	4 PC Pin Horizontal	Horizontal	2	62 mOhm	62 mOhm
