PE45579

Active

Pasternack

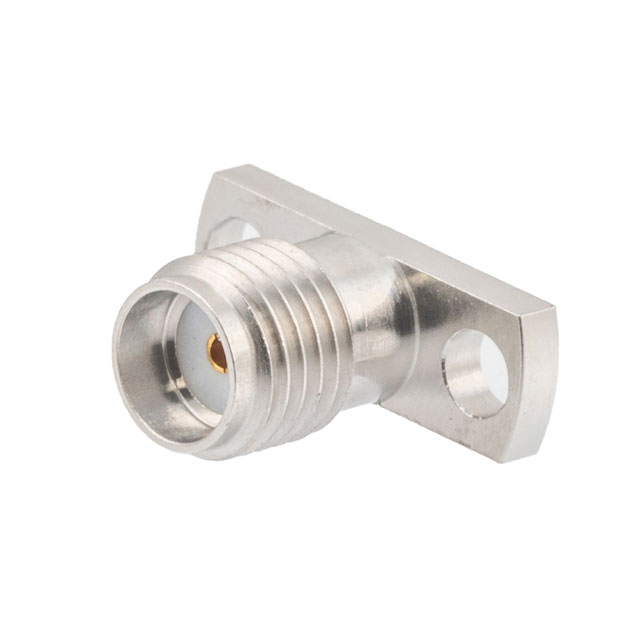

SMA(F) FLD RPL 2HOLE 0.012" PIN

Search across all available documentation for this part.

Active

Pasternack

SMA(F) FLD RPL 2HOLE 0.012" PIN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PE45579	PE4557 Series

Body Material	Stainless Steel	Stainless Steel
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	SMA	SMA
Connector Type	Receptacle, Female Socket	Receptacle, Female Socket
Contact Termination	Compression	Compression
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Features	Field Replaceable, For Hermetically Sealed Pin	Field Replaceable, For Hermetically Sealed Pin
Frequency - Max [Max]	27 GHz	27 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Mating Cycles	500	500
Mounting Feature	Flange	Flange
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Screw	Screw

SMA(F) FLD RPL 2HOLE 0.036" PIN

Part	Body Material	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Mounting Feature	Shield Termination	Features	Mating Cycles	Number of Ports	Connector Style	Impedance	Center Contact Plating	Connector Type	Dielectric Material	Center Contact Material	Housing Color
Pasternack PE45577	Stainless Steel	Compression	-65 ░C	165 °C	27 GHz	Flange	Screw	Field Replaceable, For Hermetically Sealed Pin	500	1	SMA	50 Ohms	Gold	Female Socket, Receptacle	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Silver
Pasternack PE45575	Stainless Steel	Compression	-65 ░C	165 °C	27 GHz	Flange	Screw	Field Replaceable, For Hermetically Sealed Pin	500	1	SMA	50 Ohms	Gold	Female Socket, Receptacle	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Silver
Pasternack PE45579	Stainless Steel	Compression	-65 ░C	165 °C	27 GHz	Flange	Screw	Field Replaceable, For Hermetically Sealed Pin	500	1	SMA	50 Ohms	Gold	Female Socket, Receptacle	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Silver
Pasternack PE45578	Stainless Steel	Compression	-65 ░C	165 °C	27 GHz	Flange	Screw	Field Replaceable, For Hermetically Sealed Pin	500	1	SMA	50 Ohms	Gold	Female Socket, Receptacle	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Receptacle, Female Socket 50 Ohms Panel Mount Compression
