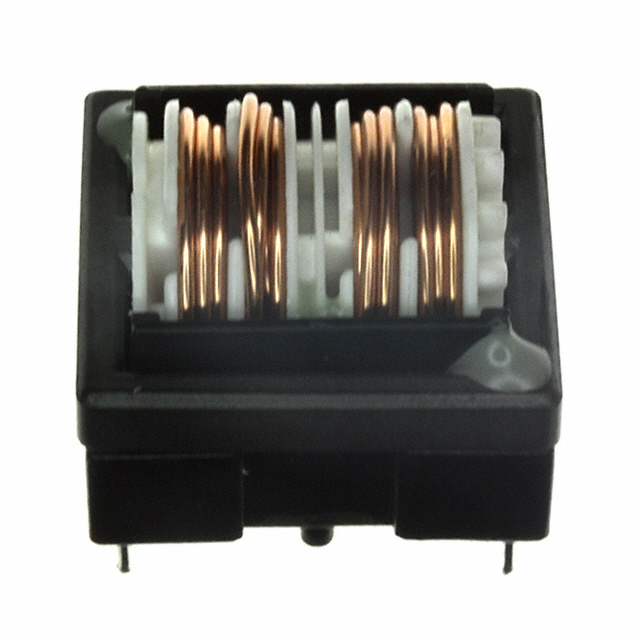

EH24-3.0-02-1M2

Active

Schaffner EMC Inc.

CMC 1.2MH 3A 2LN TH

Search across all available documentation for this part.

Active

Schaffner EMC Inc.

CMC 1.2MH 3A 2LN TH

Technical Specifications

Parameters and characteristics for this part

Specification	EH24-3.0-02-1M2

Current Rating (Max) [Max]	3 A
DC Resistance (DCR) (Max)	29 mOhm
Filter Type	Power Line
Height (Max)	0.827 in
Height (Max)	21 mm
Inductance @ Frequency	1.2 mH
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature [custom]	100 °C, -25 °C
Package / Case	Horizontal
Package / Case	4 Lead
Size / Dimension [x]	24 mm
Size / Dimension [x]	0.945 in
Size / Dimension [y]	0.945 in
Size / Dimension [y]	24 mm
Voltage Rating - AC	250 V

CMC 1.2MH 3A 2LN TH

Part	Inductance @ Frequency	Voltage Rating - AC	Height (Max)	Height (Max)	Operating Temperature [custom]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Filter Type	Number of Lines	Mounting Type	Package / Case	Package / Case	Current Rating (Max) [Max]	DC Resistance (DCR) (Max)
Schaffner EMC Inc. EH24-3.0-02-1M2	1.2 mH	250 V	0.827 in	21 mm	-25 °C, 100 °C	24 mm	0.945 in	24 mm	0.945 in	Power Line	2	Through Hole	Horizontal	4 Lead	3 A	29 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.2 mH @ 400 Hz 2 Line Common Mode Choke Through Hole 3A DCR 29mOhm (Typ)
