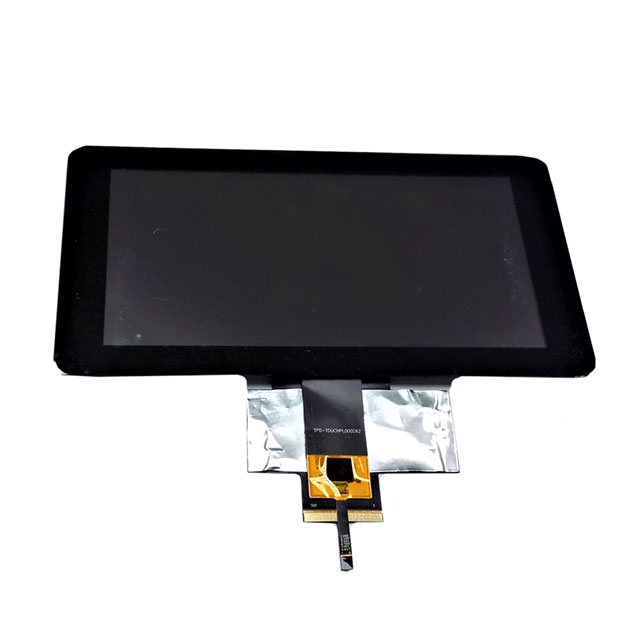

PH800480T013-IHC09
ActivePowertip Technology Inc.
GRAPHIC DISPLAY TFT RGB 7"
PH800480T013-IHC09
ActivePowertip Technology Inc.
GRAPHIC DISPLAY TFT RGB 7"
Description
General part information
PH800480T013-IHC09
Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel, 24-Bit (RGB) 7" (177.80mm) 800 x 480
Technical Specifications
Parameters and characteristics for this part
| Specification | PH800480T013-IHC09 |
|---|---|
| Backlight Color | White |
| Backlight Type | LED |
| Diagonal Screen Size | 7 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pixels (Horizontal) | 800 pixels |
| Dot Pixels (Vertical) | 480 pixels |
| Graphics Color | Red, Green, Blue |
| Interface | Parallel |
| Interface Data Width | 24 Bit |
| Viewing Area Height | 86.72 mm |
| Viewing Area Width | 154.88 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
