W29GL032CB7A
ActiveWinbond Electronics

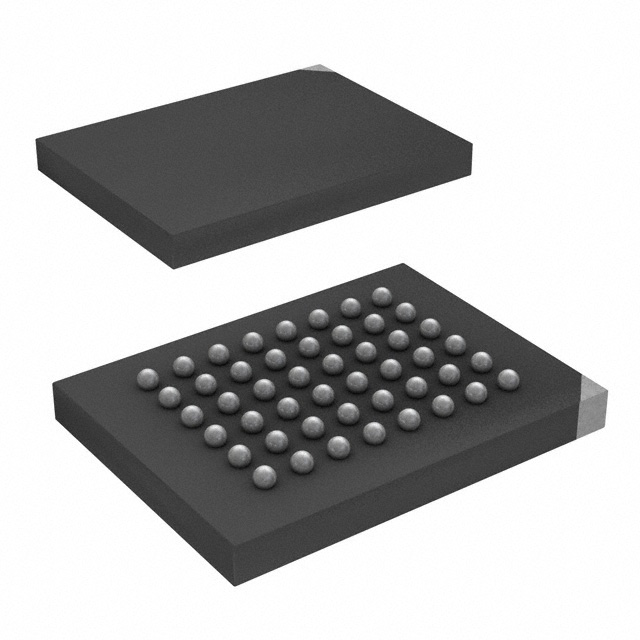

IC FLASH 32MBIT PARALLEL 48TFBGA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
W29GL032CB7A
ActiveWinbond Electronics
IC FLASH 32MBIT PARALLEL 48TFBGA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | W29GL032CB7A | W29GL032 Series |
|---|---|---|
| Access Time | 70 ns | 70 ns |
| Memory Format | FLASH | FLASH |
| Memory Interface | Parallel | Parallel |
| Memory Organization [custom] | 16, 8 | 8 - 16 |
| Memory Organization [custom] | 4 M, 2 M | 2 - 4 M |
| Memory Size | 32 Gbit | 32 Gbit |
| Memory Type | Non-Volatile | Non-Volatile |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 48-TFBGA | 64-LBGA, 48-TFSOP, 48-TFBGA |
| Package / Case | - | 18.4 mm |
| Package / Case | - | 0.724 in |
| Supplier Device Package | 48-TFBGA (6x8) | 64-LFBGA (11x13), 48-TSOP, 48-TFBGA (6x8), 56-TSOP |
| Technology | FLASH - NOR | FLASH - NOR |
| Voltage - Supply [Max] | 3.6 V | 3.6 V |
| Voltage - Supply [Min] | 2.7 V | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
W29GL032 Series
IC FLASH 32MBIT PARALLEL 64LFBGA
| Part | Memory Format | Memory Organization [custom] | Memory Organization [custom] | Supplier Device Package | Package / Case | Access Time | Memory Interface | Technology | Voltage - Supply [Min] | Voltage - Supply [Max] | Mounting Type | Memory Type | Operating Temperature [Max] | Operating Temperature [Min] | Memory Size | Package / Case [y] | Package / Case [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Winbond Electronics W29GL032CL7B | FLASH | 8, 16 | 2 M, 4 M | 64-LFBGA (11x13) | 64-LBGA | 70 ns | Parallel | FLASH - NOR | 2.7 V | 3.6 V | Surface Mount | Non-Volatile | 85 °C | -40 °C | 32 Gbit | ||
Winbond Electronics W29GL032CH7B | FLASH | 8, 16 | 2 M, 4 M | 64-LFBGA (11x13) | 64-LBGA | 70 ns | Parallel | FLASH - NOR | 2.7 V | 3.6 V | Surface Mount | Non-Volatile | 85 °C | -40 °C | 32 Gbit | ||
Winbond Electronics W29GL032CB7S | FLASH | 8, 16 | 2 M, 4 M | 48-TSOP | 48-TFSOP | 70 ns | Parallel | FLASH - NOR | 2.7 V | 3.6 V | Surface Mount | Non-Volatile | 85 °C | -40 °C | 32 Gbit | 18.4 mm | 0.724 in |
Winbond Electronics W29GL032CB7A | FLASH | 8, 16 | 2 M, 4 M | 48-TFBGA (6x8) | 48-TFBGA | 70 ns | Parallel | FLASH - NOR | 2.7 V | 3.6 V | Surface Mount | Non-Volatile | 85 °C | -40 °C | 32 Gbit | ||
Winbond Electronics W29GL032CL7T | FLASH | 8, 16 | 2 M, 4 M | 56-TSOP | 70 ns | Parallel | FLASH - NOR | 2.7 V | 3.6 V | Surface Mount | Non-Volatile | 85 °C | -40 °C | 32 Gbit | |||
Winbond Electronics W29GL032CT7A | FLASH | 8, 16 | 2 M, 4 M | 48-TFBGA (6x8) | 48-TFBGA | 70 ns | Parallel | FLASH - NOR | 2.7 V | 3.6 V | Surface Mount | Non-Volatile | 85 °C | -40 °C | 32 Gbit | ||
Winbond Electronics W29GL032CT7S | FLASH | 8, 16 | 2 M, 4 M | 48-TSOP | 48-TFSOP | 70 ns | Parallel | FLASH - NOR | 2.7 V | 3.6 V | Surface Mount | Non-Volatile | 85 °C | -40 °C | 32 Gbit | 18.4 mm | 0.724 in |
Winbond Electronics W29GL032CH7T | FLASH | 8, 16 | 2 M, 4 M | 56-TSOP | 70 ns | Parallel | FLASH - NOR | 2.7 V | 3.6 V | Surface Mount | Non-Volatile | 85 °C | -40 °C | 32 Gbit |
Description
General part information
W29GL032 Series
FLASH - NOR Memory IC 32Mbit Parallel 70 ns 48-TFBGA (6x8)
