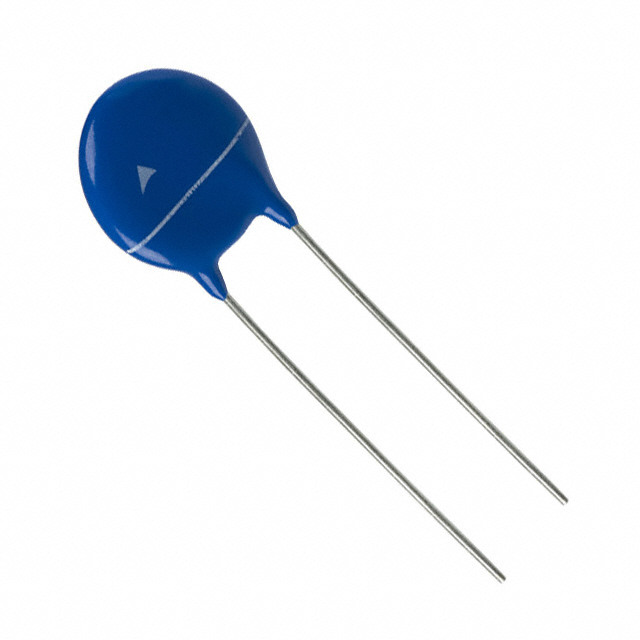

B72214S0170K551

Active

EPCOS - TDK Electronics

VARISTOR 27V 1KA DISC 14MM

Deep-Dive with AI

Search across all available documentation for this part.

B72214S0170K551

Active

EPCOS - TDK Electronics

VARISTOR 27V 1KA DISC 14MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	B72214S0170K551	B72214S Series

Capacitance @ Frequency	8200 pF	8.2 - 9950 pF
Current - Surge	1 kA	1 - 6 kA
Energy	-	3.2 - 220 J
Grade	-	Automotive
Maximum AC Volts	-	300 - 385 V
Maximum AC Volts [Max]	17 V	11 - 680 V
Maximum DC Volts	-	670 V
Maximum DC Volts [Max]	22 V	14 - 895 V
Mounting Type	Through Hole	Through Hole
Number of Circuits	1	1
Operating Temperature [Max]	105 °C	85 - 125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	14 mm	14 mm
Package / Case	Disc	Disc
Package / Case	-	10 mm
Qualification	-	AEC-Q200
Varistor Voltage (Max)	29.7 V	24.2 - 225.5 V
Varistor Voltage (Max)	-	1.001 - 902 V
Varistor Voltage (Min)	-	16.2 - 990 V
Varistor Voltage (Min)	-	29.7 V
Varistor Voltage (Typ)	27 V	1 - 910 V

B72214S Series

VARISTOR 65V DISC 14MM

...

Part	Package / Case	Package / Case	Maximum DC Volts [Max]	Mounting Type	Number of Circuits	Operating Temperature [Min]	Operating Temperature [Max]	Qualification	Varistor Voltage (Max) [Max]	Varistor Voltage (Min) [Min]	Grade	Varistor Voltage (Typ)	Maximum AC Volts [Max]	Energy	Capacitance @ Frequency	Current - Surge	Maximum DC Volts	Varistor Voltage (Max)
EPCOS - TDK Electronics B72214S1390K501	14 mm	Disc	50 V	Through Hole	1	-40 °C	125 °C	AEC-Q200	71.5 V	58.5 V	Automotive	65 V	48 V	13 J
EPCOS - TDK Electronics B72214S0421K201	14 mm	Disc	560 V	Through Hole	1	-40 °C	105 °C		748 V	612 V		680 V	420 V	90 J	290 pF	4.5 kA
EPCOS - TDK Electronics B72214S2461K101	14 mm	Disc	615 V	Through Hole	1	-40 °C	105 °C		825 V	675 V		750 V	460 V	150 J	320 pF	5 kA
EPCOS - TDK Electronics B72214S0511K501	14 mm	Disc		Through Hole	1	-40 °C	105 °C		902 V	738 V		820 V	510 V	110 J	240 pF	4.5 kA	670 V
EPCOS - TDK Electronics B72214S0421K551	14 mm	Disc	560 V	Through Hole	1	-40 °C	105 °C		748 V	612 V		680 V	420 V	90 J	290 pF	4.5 kA
EPCOS - TDK Electronics B72214S1140K251	14 mm	Disc	16 V	Through Hole	1	-40 °C	105 °C	AEC-Q200		19.8 V	Automotive	22 V	14 V	4 J	10 pF	1 kA		24.2 V
EPCOS - TDK Electronics B72214S0170K151	14 mm	Disc	22 V	Through Hole	1	-40 °C	105 °C					27 V	17 V		8200 pF	1 kA		29.7 V
EPCOS - TDK Electronics B72214S2421K101	14 mm	Disc	560 V	Through Hole	1	-40 °C	105 °C		748 V	612 V		680 V	420 V		290 pF	5 kA
EPCOS - TDK Electronics B72214S0421K151	14 mm	Disc	615 V	Through Hole	1	-40 °C	85 °C		825 V	675 V		750 V	460 V	100 J	260 pF	4.5 kA
EPCOS - TDK Electronics B72214S2211K101	14 mm	Disc	270 V	Through Hole	1	-40 °C	105 °C		363 V	297 V		330 V		80 J	580 pF	6 kA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.19

Description

General part information

B72214S Series

27 V 1 kA Varistor 1 Circuit Through Hole Disc 14mm
