Description
General part information

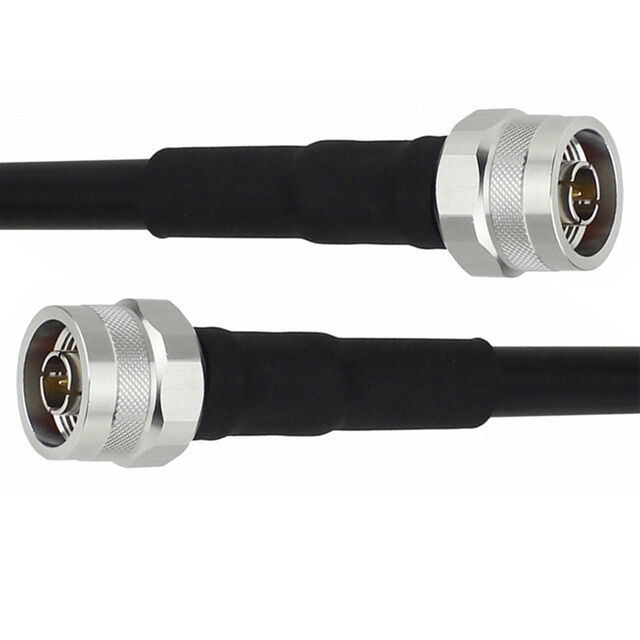

LMB17-N1N1-F75
Cable Assembly Coaxial N-Type to N-Type 900.0" (22.9m) 75.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | LMB17-N1N1-F75 |
|---|---|
| 1st Connector | N-Type Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR |
| Cable Type Size | 400 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max | 8 GHz |
| Length | 900 in |
| Length (ft) | 75 ft |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | N-Type |
