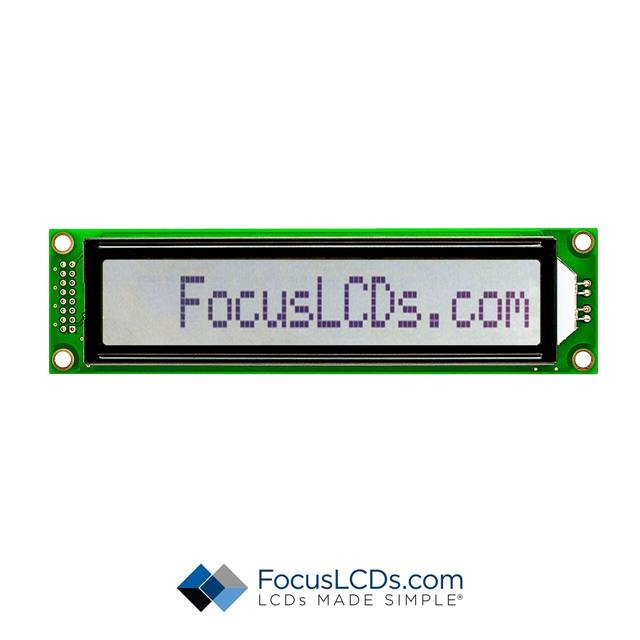

C161C-FTW-LW63
ActiveFocus LCDs
16X1FSTN GRAY CHARACTER LCD
C161C-FTW-LW63
ActiveFocus LCDs
16X1FSTN GRAY CHARACTER LCD
Description
General part information
C161C-FTW-LW63
Character Display Module Transflective 5 x 8 Dots FSTN - Film Super-Twisted Nematic LED - White Parallel 151.00mm x 40.00mm x 13.00mm
Technical Specifications
Parameters and characteristics for this part
| Specification | C161C-FTW-LW63 |
|---|---|
| Background Color | Gray |
| Backlight Color | White |
| Backlight Type | LED |
| Character Height | 14.54 mm |
| Character Height (Dots) | 8 Dots |
| Character Width | 6 mm |
| Character Width (Dots) | 5 Dots |
| Controller Type | ST7066U |
| Display Columns | 16 |
| Display Mode | Transflective |
| Display Rows | 1 |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Dot Size Height | 1.77 mm |
| Dot Size Width | 1.15 mm |
| Interface | Parallel |
| Number of Characters | 16 characters |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Outline Height | 13 mm |
| Outline Length | 151 mm |
| Outline Width | 40 mm |
| Text Color | Black |
| Viewing Area Length | 120 mm |
| Viewing Area Width | 23 mm |
| Voltage - Supply | 3.3 V |
