2-1103100-3
ActiveTE Connectivity AMP Connectors

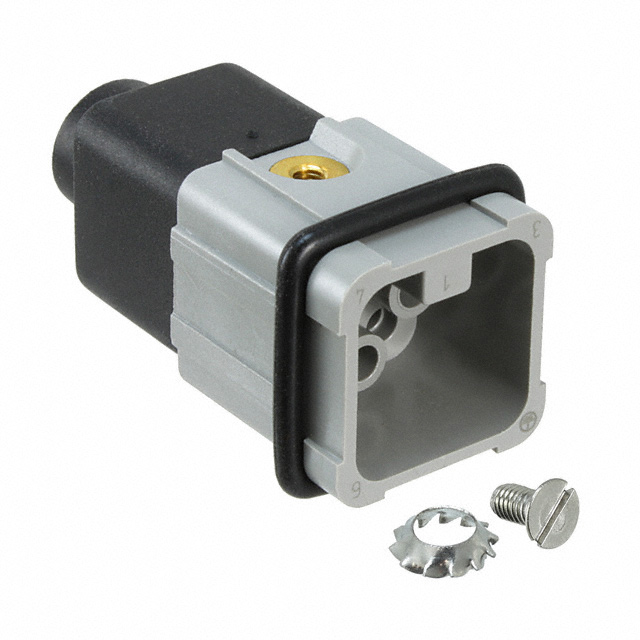

INSERT MALE 7POS+1GND CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-1103100-3
ActiveTE Connectivity AMP Connectors
INSERT MALE 7POS+1GND CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-1103100-3 |
|---|---|
| Color | Gray |
| Connector Type | Insert without Contacts |
| Contact Type | HTS HN.D |
| Current Rating (Amps) | 10 A |
| Gender | Male |
| Housing Material | Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 7+Ground |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 1 Gallon |
| Termination Style | Crimp |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.60 | |
| 10 | $ 18.21 | |||
| 30 | $ 17.73 | |||
| 50 | $ 16.85 | |||
| 100 | $ 15.21 | |||
| 250 | $ 15.11 | |||
| 500 | $ 13.17 | |||
1103100 Series
INSERT MALE 7POS+1GND CRIMP
| Part | Contact Type | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Gender | Color | Number of Positions | Termination Style | Housing Material | Material Flammability Rating | Size | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-1103100-3 | HTS HN.D | Insert without Contacts | 125 °C | -40 °C | 250 VDC | Male | Gray | 7+Ground | Crimp | Polycarbonate (PC) | UL94 V-0 | 1 Gallon | 10 A |
Description
General part information
1103100 Series
Male Insert without Contacts Gray 7+Ground Position Crimp
