2337098-1
ActiveTE Connectivity AMP Connectors
RF / COAXIAL CONNECTOR, SMPS COAXIAL, EDGE LAUNCH JACK, BOARD EDGE / END LAUNCH, 50 OHM
2337098-1
ActiveTE Connectivity AMP Connectors
RF / COAXIAL CONNECTOR, SMPS COAXIAL, EDGE LAUNCH JACK, BOARD EDGE / END LAUNCH, 50 OHM
Description
General part information
2337098-1

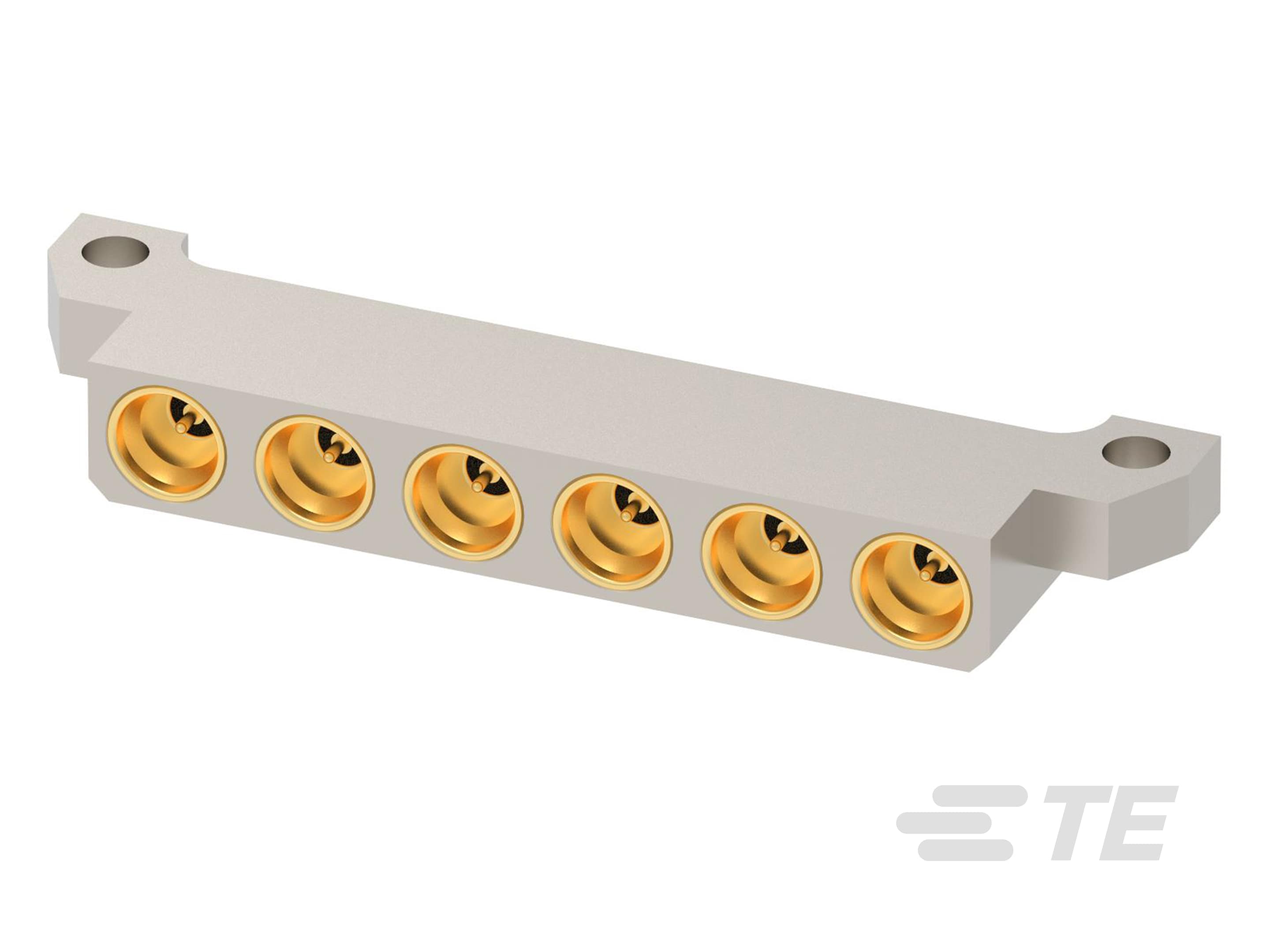

6 Coaxial Contacts, Edge, Beryllium Copper, Cable-to-Board, 6 Position, 25.4 mm [1 in] Centerline, Printed Circuit Board, Board Mount, PCB RF Modules
Technical Specifications
Parameters and characteristics for this part
| Specification | 2337098-1 |
|---|---|
| Center Contact Material | Copper Alloy |
| Connector Style | SMPS |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Fastening Type | Snap-On |
| Features | Full Detent |
| Housing Color | Gold |
| Impedance | 50 Ohm |
| Mounting Type | End Launch, Board Edge |
| Number of Ports | 6 |
| Shield Termination | Solder |
