2377783-4
ActiveTE Connectivity AMP Connectors

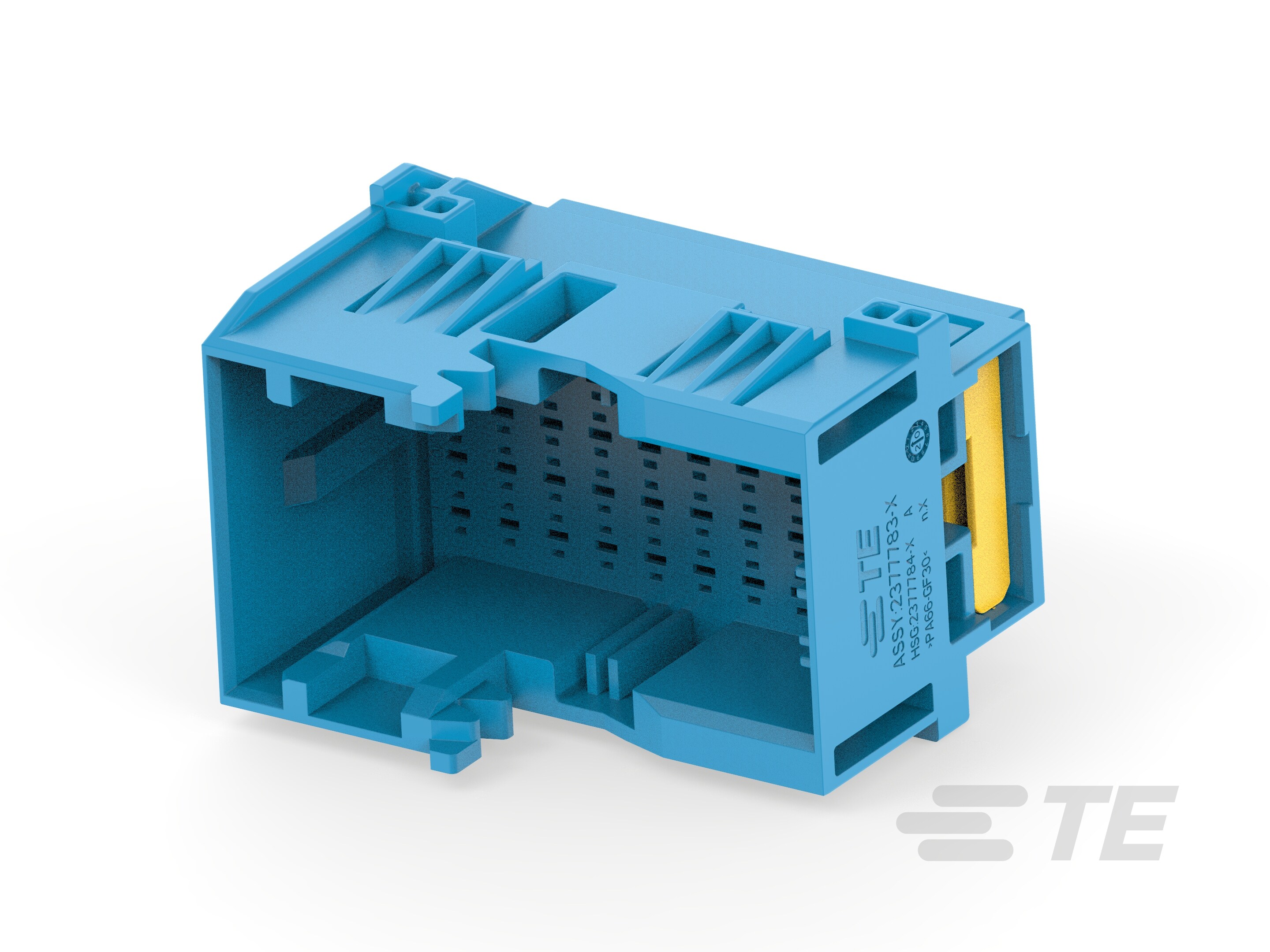

36POS,AMP MCP 1.5K,TAB HSG ASSY,UNSLD
2377783-4
ActiveTE Connectivity AMP Connectors
36POS,AMP MCP 1.5K,TAB HSG ASSY,UNSLD
Description
General part information
2377783-4
36 Position Housing, Housing for Male Terminals, Wire-to-Wire, Blue, Wire & Cable, Power, Cable Mount (Free-Hanging), -40 – 120 °C [-40 – 248 °F]
Technical Specifications
Parameters and characteristics for this part
| Specification | 2377783-4 |
|---|---|
| Color | Blue |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Insulation Material | Nylon 6/6, Polyamide (PA66), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 36 |
| Number of Rows | 4 |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
