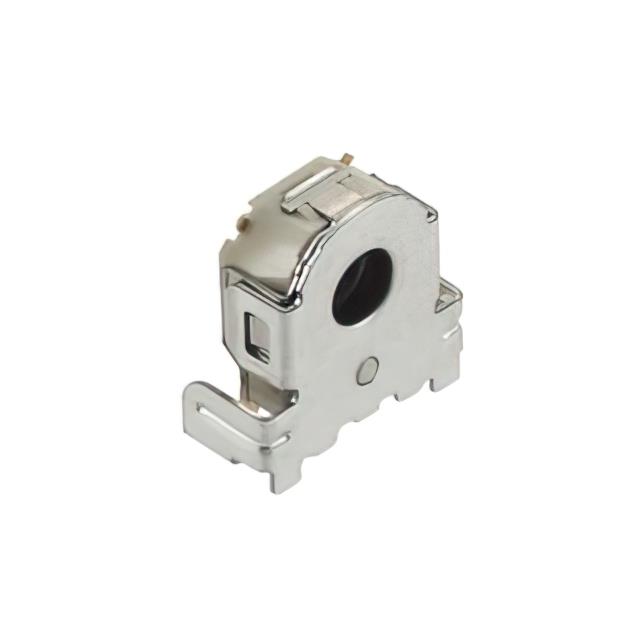

EC05E1220203
ActiveALPS ALPINE CO., LTD
THROUGH SHAFT ENCODERS
EC05E1220203
ActiveALPS ALPINE CO., LTD
THROUGH SHAFT ENCODERS
Description
General part information
EC05E1220203
Rotary Encoder Mechanical 12 Quadrature (Incremental) Vertical
Technical Specifications
Parameters and characteristics for this part
| Specification | EC05E1220203 |
|---|---|
| Actuator Type | Hole for Shaft |
| Built in Switch | No |
| Detent | Yes |
| Encoder Type | Mechanical |
| Mounting Type | Through Hole, PCB |
| Orientation | Vertical |
| Output Type | Quadrature (Incremental) |
| Pulses per Revolution | 12 |
| Rotational Life (Cycles Min) | 100 K |
| Termination Style | PC Pin |
| Voltage - Supply | 5 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
